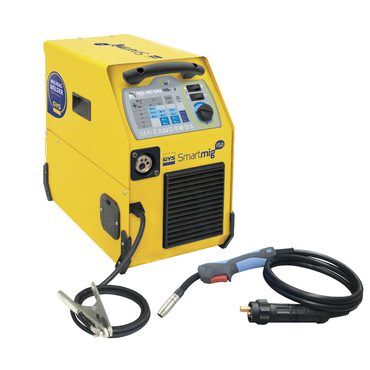

GYS SmartMIG 152 | 140A MIG Welder

GYS Smartmig 152 (140A) 2 in 1 Compact Mig Welder MIG/MAG welding (Ex Display) is a versatile and efficient welding solution for professionals and DIY enthusiasts alike. This ex-display model features MIG/MAG welding capabilities. It is capable of welding various materials such as steel, stainless steel, and aluminium with ease. It delivers a maximum power output of 140 amps and can weld up to 5 mm thickness.

Robust, this welding machine range allows the hobbiest or craftsmen to make accurate adjustments in just a few seconds. This too without needing to know the numeric settings.

This compact welder is perfect for those who require portability and flexibility in their welding setup.

Features of GYS SmartMIG 152:

Its lightweight design makes it easy to transport to different job sites, while its intuitive interface and digital display allow for easy adjustment of welding parameters. Additionally, the Smartmig 152 features a thermal protection system that prevents overheating and extends the lifespan of the machine.

• 2 in 1 Welding with gas and without gas («no gas»)
• Traditional machine with transformer
• Easy to set up
• Simplified welding access
• Can be used on multiple metals
• Steel, stainless steel or aluminium

Overall, the GYS Smartmig 152 (140A) 2 in 1 Compact Mig Welder is a reliable and cost-effective welding solution that delivers professional-quality results. With its compact size, ease of use, and impressive performance, this welder is an excellent addition to any workshop or job site.

Welding is a diverse field and requires various welding products and accessories. There are many different types of welding machines such as MIG, TIG and Stick. However, while using these welding machines, always take necessary precautions!

How to use GYS SmartMIG 152?

To use the GYS SmartMIG 152, follow these steps:

Safety Precautions

1. Wear Protective Gear: Ensure you have appropriate protective gear, including a welding helmet, gloves, and long sleeves.
2. Ventilation: Work in a well-ventilated area to avoid inhaling harmful fumes.
3. Inspect Equipment: Check the welder, cables, and connections for any damage before use.

 Setup

1. Power Connection: Plug the welder into a suitable 230V power source.
2. Ground Clamp: Attach the ground clamp to a clean, unpainted metal surface of the workpiece.
3. Wire Spool Installation: Open the side panel, place the wire spool on the spindle, and feed the wire into the drive roll.
4. Wire Feed Adjustment: Adjust the tension on the drive roll to ensure smooth wire feeding.

 Settings

1. Select Mode: Choose the welding mode (MIG/MAG, FCAW, etc.) on the control panel.
2. Adjust Parameters: Use the “Smart” settings guide on the machine to set the appropriate wire feed speed and voltage based on the material thickness and type.
3. Gas Connection: If using MIG/MAG mode, connect the shielding gas (typically argon or CO2) and set the appropriate flow rate.

 Welding

1. Wire Stick-Out: Ensure the wire stick-out (distance between the contact tip and the workpiece) is approximately 3/8 inch (10mm).
2. Position the Gun: Hold the welding gun at a 10-15 degree angle from vertical, pointing towards the direction of the weld.
3. Initiate the Arc: Pull the trigger to start the wire feed and arc. Move the gun steadily along the weld joint, maintaining a consistent speed and distance.
4. Travel Speed: Maintain a steady travel speed to ensure a uniform weld bead.

 Finishing

1. Release Trigger: Once the weld is complete, release the trigger to stop the wire feed and arc.
2. Inspect Weld: Check the weld for consistency and any defects.
3. Turn Off Welder: After completing your welding, turn off the welder and disconnect it from the power source.

 Maintenance

1. Clean Nozzle and Tip: Regularly clean the nozzle and contact tip to prevent spatter build-up.
2. Check Wire Feed: Ensure the wire feed mechanism is clean and properly adjusted to avoid feeding issues.
3. Store Properly: Store the welder and accessories in a dry, cool place to prevent damage.

Frequently Asked Questions:

 How thick can a 140 MIG welder weld?

A 140 MIG welder can typically weld steel up to 1/4 inch thick, depending on the material and welding conditions.

What is MIG MAG welding used for?

MIG MAG welding is used for joining metals, particularly in automotive, construction, and manufacturing industries. MIG (Metal Inert Gas) is used for non-ferrous metals, while MAG (Metal Active Gas) is used for ferrous metals.

 What is the best entry level MIG welder?

Popular entry-level MIG welders include the Lincoln Electric K2185-1 Handy MIG, Hobart Handler 140, and Forney Easy Weld 140 MP. These models are known for their ease of use, reliability, and versatility.

 What is a 120V MIG welder good for?

A 120V MIG welder is good for light to medium-duty welding tasks, such as DIY projects, home repairs, and auto body work. It is suitable for welding thinner materials, typically up to 1/4 inch thick.
