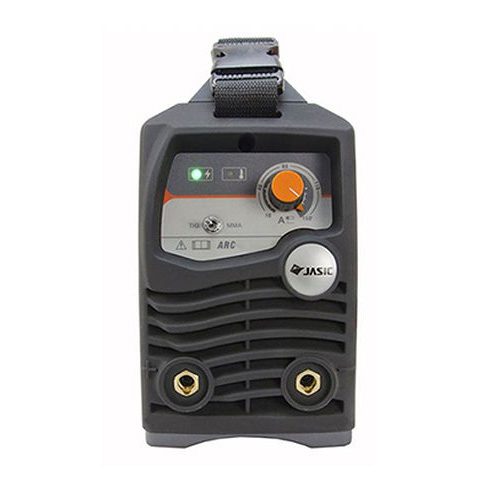

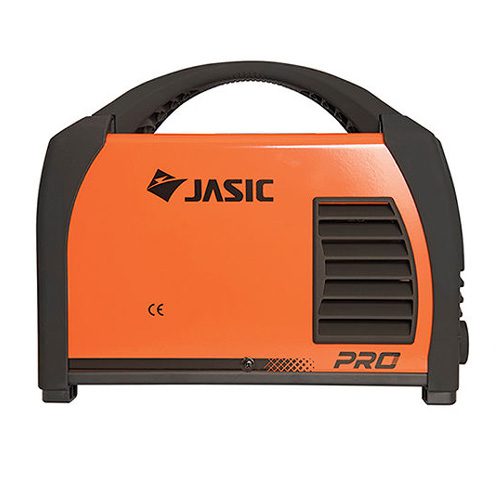

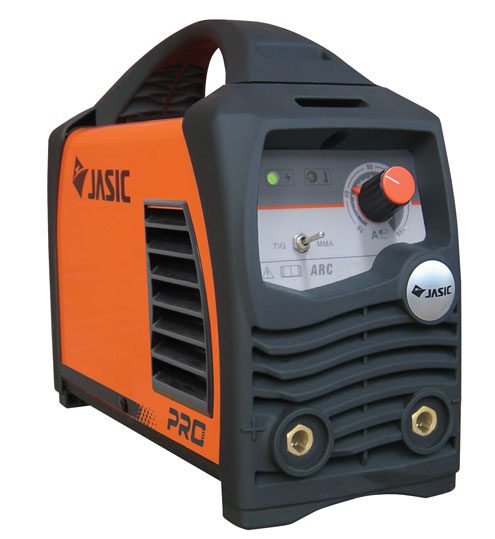

Jasic Arc 140 Pro MMA Inverter Welder

MMA welding: Welds most coated electrodes with ease, including rutile, stainless steel, cast iron, and basic types (up to Ø 4 mm).
Inverter technology: Offers immediate ignition thanks to high open-circuit voltage, consistent welding power, and smooth fusion via constant current. Built-in protection guards against overcurrent.
Welding aids:

• Hot Start provides easy arc ignition.

• Arc Force delivers a temporary current boost in challenging conditions.

• Antisticking minimizes electrode sticking on contact.

Ultra portable: Weighs just 2.9 kg with a compact form that fits easily into shelves or cabinets. Designed for convenience, it can be carried by hand or over the shoulder using the included strap.

Techno 11 welding helmet:

• Field of vision: 98 x 35 mm for a wide, clear view.

• Light shade 3: Offers excellent visibility for welding preparation.

• Dark shade 11: Ideal for welding, providing optimal protection.

• Fast darkening speed: Responds in just 0.6 ms for quick adjustments.

• TRUE COLOR technology: Enhances visibility and reduces eye strain for improved welding accuracy.

MMA WELDING: Welds most coated electrodes with ease, including rutile, stainless, cast iron, and basic (up to Ø 3.2 mm).

INVERTER TECHNOLOGY: Immediate ignition with high open-circuit voltage, consistent welding power, smooth fusion due to constant current, and overcurrent protection.

WELDING AIDS:

• • Hot Start: Ensures easy ignition.

  • Arc Force: Provides a temporary surge of current during difficult welding situations.

  • Antisticking: Minimizes the risk of electrode sticking to the workpiece.

ULTRA PORTABLE: Lightweight (2.7 kg) with a compact design for easy storage. Comes with a strap for easy carrying on the shoulder or by hand.

CONTROL PANEL: Intuitive with a single potentiometer for adjusting welding current (10-120 A).

WELDING CURRENT RANGE:

• • Ø 1.6 mm: 40 A

  • Ø 2.0 mm: 60 A

  • Ø 2.5 mm: 80 A

  • Ø 3.2 mm: 100 A
