The GYSMI 160P MMA INVERTER Ready to Weld Bundle is based on an MMA Electrode Welder that ranges from 10 to 160 Amps. Its integrated technology enables a steady weld and is ideal for professional and regular intensive work. The GYMSI 160P is also a light machine weighing only 4.2kg and is easy to carry.
This MMA Welder handles electrodes from 1.6mm to 4mm and welds rutiles, cast- iron and stainless steel. It facilitates SCRATCH TIG welding which is perfect for work on thin metal sheets.
The GYMSI 160P has Power Control that allows for a low consumption rate of 16A-230V and is tolerant to currency fluctuation or arc length. The Power Controller is protected and compatible with generators of 6Kw (7.5Kva).
ARC QUALITY is Instantaneous at the start with high penetration and arc stability.
The Inverter Technology within the GYMSI 160P enables Hot Starts that feeds Additional power to start the arc along with an Anti-Sticking feature that decreases the current to release the electrode. Another feature of the inverter is that the Arc Force increases the current instantaneously.

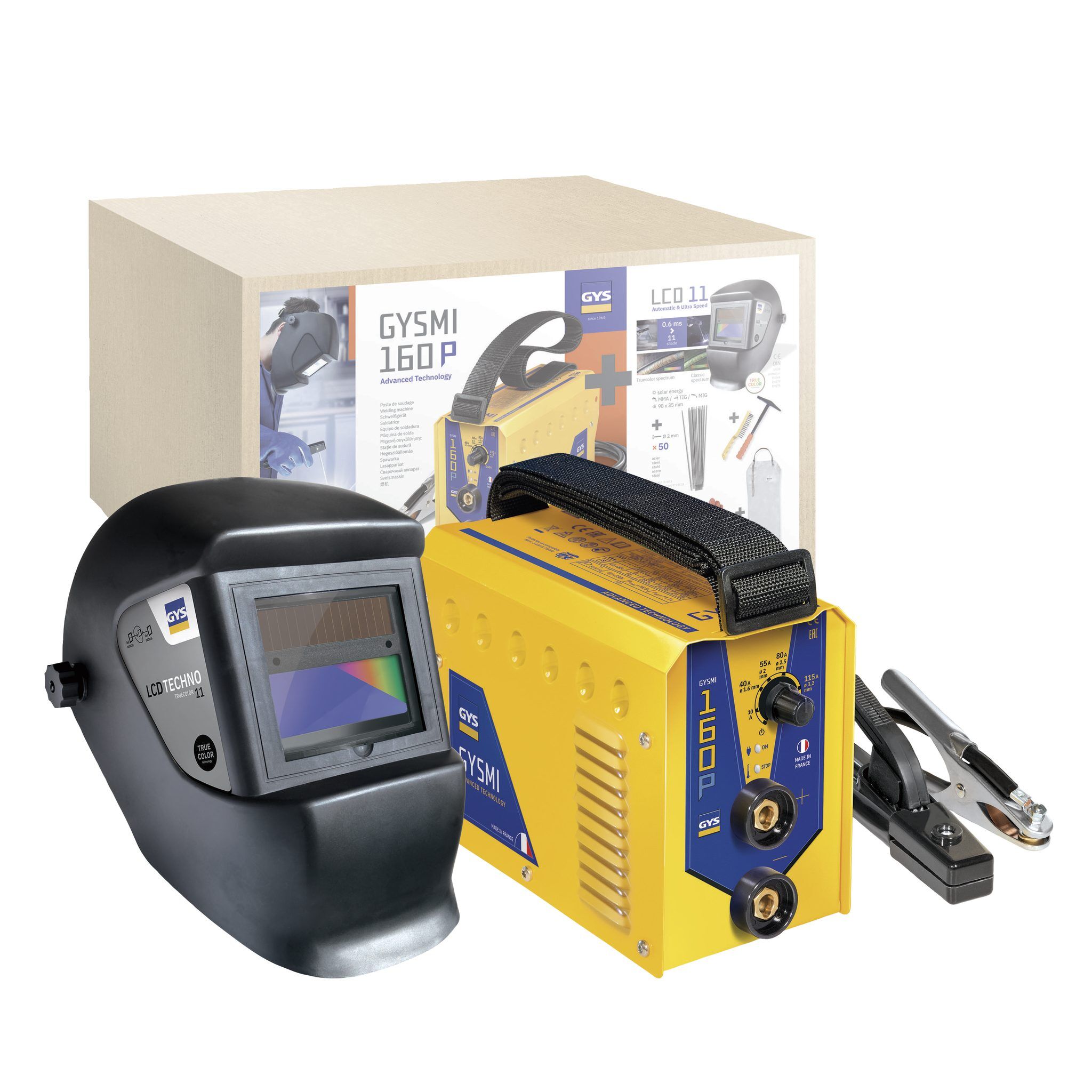

This 013360 version of the 160P MMA Inverter Welder comes delivered in a box with an Electrode Holder, an Earth Clamp, a Wire Brush, an LCD Techno 11 Welding Helmet, Electrodes, Chipping Hammer, Wire Brush, and Welding Gloves.
- Power Requirement Voltage: 230 V
- Power Requirement Phase: 1 Phase
- Power Requirement Herz: 50/60 Hz
- Welding Output Range (MMA): 10 to 160
- Electrode Size Range: 1.6 to 4
- Electrodes/Hr Ø1.6: 62
- Electrodes/Hr Ø2: 50
- Electrodes/Hr Ø2.5: 47
- Electrodes/Hr Ø3.2: 45
- Electrodes/Hr Ø4: 22
- P400 Tech.: Yes
- HS Tech.: Yes
- AF Tech.: Yes
- Anti-Sticking Tech.: Yes
- Duty Cycle (20°C) Normal Use: 60% @ 160 A
- Output Voltage: 72 V
- Dimensions: 27 x 17 x 11
- Weight: 4.2
- Shipping Dimensions: 42 x 35 x 14 cm
- Shipping Weight: 6.7 Kg
- Power Generator (+/- 15%): 6.5 kW
