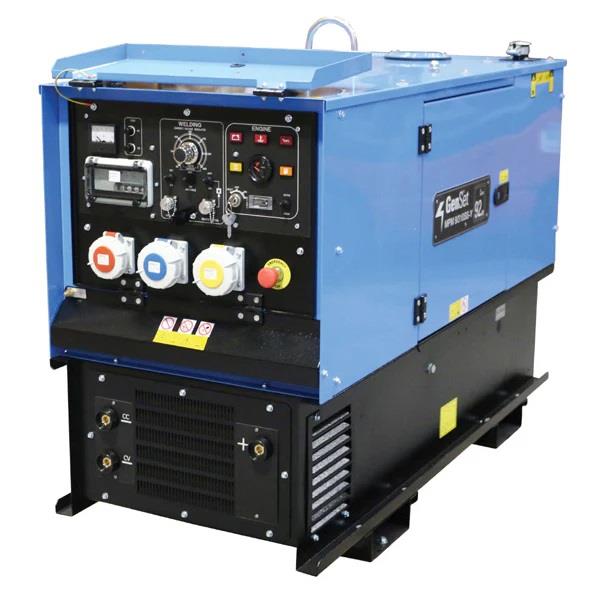

GENSET 300 DY DIESEL WELDER GENERATOR (YANMAR ENGINE)
The Genset 300 DY diesel welder generator is an Italian made machine offering 300 amps welding output, as well as 110, 230 and 400V power too. A good solution for vehicle mounted welding plant for off grid power and welding. Couple this with the ability to use a MIG wire feed unit thanks to the constant current, constant voltage welding output, it is an ideal mobile welding set.
Further features include engine auto idle, a remote control socket and an arc force control switch.
A Yanmar diesel engine powers this capable Genset, allowing welding of up to 6mm electrodes. Its many features and quality build enable this machine to be used for the most industrial of applications.
FEATURES
- Auto engine protection shutdown system with warning lights for: battery charger failure, low fuel level, low oil pressure and high water temperature
- Arc Force Control switch
- Remote control socket
- Automatic idle device when no load is connected
- 1 x 16A 400V Three phase EEC socket
- 1 x 32A 230V Single phase EEC socket
- 1 x 32A 110V Single phase EEC socket
- Earth leakage circuit breaker
- Power output protection
- 12V battery
- Fuel level gauge
- Hourmeter
- Voltmeter
- Emergency stop button
- Engine oil drain pipe
- Bunded base to retain all liquids
- Central lifting eye
DC WELDING
| Amps range | 30 – 300A |
| Duty cycle @ 35% | 300A – 32V |
| Duty cycle @ 60% | 270A – 31V |
| Open Circuit Voltage (OCV) | 70V |
| Max Welding Rod | 6mm |
DIESEL ENGINE
| Type | Yanmar 3TMN72 – 3 Cylinder – 904cm³ |
| Max Power | 19.4HP (14.4kW/m) |
| Cooling System | Water |
| Fuel Tank Capacity | 50 Litres |
| Fuel Consumption @ 75% | 5.1 Litres/Hour |
DIMENSIONS
1530 X 683 X 1142mm (Length x Width x Height)
Dry Weight 475KG
Related products
Genset Weld Baby 180 Petrol Welder Generator
GENSET WELD BABY 180 – PORTABLE PETROL WELDER GENERATOR
The Genset WeldBaby is a portable petrol welder generator with both 110 and 230V DC power take off sockets. A 60% duty cycle at 165A is ample for all types of welding rods up to 4mm. Weighing just 35kg (dry), this is a very portable and lightweight machine, ideal for on site welding. Running from a quality Honda GX200 engine for ultimate reliability. Mobile welding van tight for space and near the weight limit? These are ideal. An engine driven welder provides power and a welding output wherever you are. No need for large generators to power welding sets, just pick it up, pull start and away you go. The Genset Weldbaby 180 comes with a 2 year warranty and is made in Italy.Features
The compact Weld Baby incorporates features such as:- Low oil cut out
- Auto idle device when no load is connected
- Switch breaker
- 1 x 16A 110V AC single phase socket (0.5kW)
- 1 x 16A 230V AC single phase socket (1kW)
- 40 – 165A DC Welding Output
- Duty Cycle @ 60% 165A
- 70V Open circuit voltage
- Stage 5 Honda GX 200 engine
- Portable Petrol Welder Generator
- Current range, continuous: 40 ÷ 165A
- Duty cycle: 165 A – 60%
- Open circuit voltage: 70 V
- Arc welding source in D.C. welding
- Welds any type of electrode, including cellulosic
- Fuel Tank Capacity 3 Litres
- Fuel consumption 1.8 Litres @ 75%
- Dry weight: 35 kg
- Dimensions: 510 x 440 x 460 mm
- Acoustic power LwA (pressure LpA): 98 dB(A)
Genset MPM 5/200 I-EL/H Petrol Welder Generator
Genset MPM 5/200 I-EL/H Petrol Welder Generator
The Genset MPM 5/200 petrol welder generator is an Italian made petrol engine driven welder generator. A stepless welding current adjustment from 30A to 200A allows the user to run up to 4mm welding rods (including cellulosic). The generator side of this Genset offers both a 110V socket and a 230V socket, perfect for on site work, running angle grinders, lighting etc. Portable, compact, lightweight and easily transportable engine driven welder, is equipped with Honda 3000 RPM engine and is fitted for remote control operation. An asyncronous alternator provides a better welding current quality, with a clean and distorsion free wave form. Just like all the GenSet engine driven welders it is designed to be used as both a generator and welder simultaneously, its simple and smart design allows easy handling too. Powered by a stage 5 compliant Honda GX390 engine, you can be rest assured that the machine is built to last and will stand up to Industrial use. Further features of the Genset MPM 5/200 is an electric start for easy starting, an arc force control switch and a voltmeter. A socket on the front of the machine accepts the connection of a remote control, for amperage control without having to move backwards and forwards to the machine.FEATURES
- Welding with cellulosic electrode
- Stepless current adjustment
- Remote control socket
- Arc Force Control switch
- Low oil level cut out device
- Earth leakage circuit breaker
- Power output protection
- 1 x 16A / 230V single phase EEC socket (2kVA)
- 1 x 16A / 110V single phase EEC socket (3.6kVA)
- Voltmeter
DC WELDING
| Amps range | 30 – 200A |
| Duty cycle @ 35% | 200A – 28V |
| Duty cycle @ 60% | 150A – 26V |
| Open Circuit Voltage (OCV) | 70V |
| Max Welding Rod | 4mm |
PETROL ENGINE
| Type | Honda GX390 – 1 Cylinder – 390cm³ |
| Max Power | 11HP (8.2kW) |
| Cooling System | Air |
| Fuel Tank Capacity | 6.1 Litres |
| Fuel Consumption @ 75% | 3.3 Litres/Hour |
DIMENSIONS
Measurement: 720mm x 480mm x 515mm (L x W x H) Dry Weight: 96KG
Genset MPM 5/180 I-D/AE-Y Diesel Welder Generator
Genset MPM 5/180 I-D/AE-Y Diesel Welder Generator
The Genset MPM 5/180 is an Italian made diesel engine driven welder generator. A stepless welding current adjustment from 40A to 170A allows the user to run up to 4mm welding rods. The generator side of this Genset offers both a 110V socket and a 230V socket, perfect for on site work, running angle grinders, lighting etc. This portable, compact, lightweight and easily transportable engine driven welder, is equipped with a Yanmar L100V 3000 RPM engine and is fitted for remote control operation. A quality alternator provides a better welding current quality, with a clean and distortion free wave form. Just like all the GenSet engine driven welders it is designed to be used as both a generator and welder simultaneously, its simple and smart design allows easy handling too. Powered by a stage 5 compliant Yanmar L100V engine, you can be rest assured that the machine is built to last and will stand up to Industrial use. Further features of the Genset MPM 5/180 is an electric start for easy starting, auto idle and a voltmeter.FEATURES
- Warning lights for battery charger failure and low oil pressure
- 12V battery
- Stepless current adjustment
- Earth leakage circuit breaker
- Power output protection
- 1 x 16A / 230V single phase EEC socket (4kVA)
- 1 x 16A / 110V single phase EEC socket (2kVA)
- Voltmeter
DC WELDING
| Amps range | 40 – 170A |
| Duty cycle @ 35% | 170A – 27V |
| Duty cycle @ 60% | 140A – 26V |
| Open Circuit Voltage (OCV) | 90V |
| Max Welding Rod | 4mm |
PETROL ENGINE
| Type | Yanmar L100V – 1 Cylinder – 435cm³ |
| Starting System | Electric (12VDC) |
| Cooling System | Air |
| Fuel Tank Capacity | 5.5 Litres |
| Fuel Consumption @ 75% | 1.45 Litres/Hour |
DIMENSIONS
Measurement: 920mm x 460mm x 570mm (L x W x H) Dry Weight: 148KG
Genset MPM 8/300 I-K Diesel Welder Generator
GENSET 300 IK DIESEL WELDER GENERATOR
The Genset 300 IK diesel welder generator is an Italian made machine offering 300 amps welding output, as well as 110, 230 and 400V power too. Fairly lightweight within its class, we have found these to be a good solution for vehicle mounted welding plant. Couple this with the ability to use a MIG wire feed unit thanks to the constant current, constant voltage welding output, it is an ideal mobile welding set. Further features include engine auto idle, a remote control socket and an arc force control switch. A Kubota diesel engine powers this capable Genset, allowing welding of up to 6mm electrodes. Its many features and quality build enable this machine to be used for the most industrial of applications.DC WELDING
| Amps range | 30 – 300A |
| Duty cycle @ 35% | 300A – 32V |
| Duty cycle @ 60% | 270A – 31V |
| Open Circuit Voltage (OCV) | 70V |
| Max Welding Rod | 6mm |
DIESEL ENGINE
| Type | Kubota – 3 Cylinder – 719cm³ |
| Max Power | 19.4HP (14.4kW/m) |
| Cooling System | Water |
| Fuel Tank Capacity | 30 Litres |
| Fuel Consumption @ 75% | 3.3 Litres/Hour |
DIMENSIONS
1360 X 530 X 870mm (Length x Width x Height) Dry Weight 345KG
Genset MPM 9/300 I-Y Diesel Welder Generator (Yanmar)
GENSET 300 IY DIESEL WELDER GENERATOR (YANMAR ENGINE)
The Genset 300 IY diesel welder generator is an Italian made machine offering 300 amps welding output, as well as 110, 230 and 400V power too. Fairly lightweight within its class, we have found these to be a good solution for vehicle mounted welding plant. Couple this with the ability to use a MIG wire feed unit thanks to the constant current, constant voltage welding output, it is an ideal mobile welding set. Further features include engine auto idle, a remote control socket and an arc force control switch. A Yanmar diesel engine powers this capable Genset, allowing welding of up to 6mm electrodes. Its many features and quality build enable this machine to be used for the most industrial of applications.FEATURES
- Controller (DSE 3110) with digital display for full monitoring of generator parameters
- Fuel level gauge
- Remote control socket
- Automatic idle device when no load is connected
- 1 x 16A 400V Three phase EEC socket
- 1 x 32A 230V Single phase EEC socket
- 1 x 32A 110V Single phase EEC socket
- Earth leakage circuit breaker
- 12V battery
- Hourmeter
- Emergency stop button
- Central lifting eye
DC WELDING
| Amps range | 30 – 300A |
| Duty cycle @ 35% | 300A – 32V |
| Duty cycle @ 60% | 270A – 31V |
| Open Circuit Voltage (OCV) | 70V |
| Max Welding Rod | 6mm |
DIESEL ENGINE
| Type | Yanmar – 3 Cylinder – 904cm³ |
| Max Power | 19.4HP (14.4kW/m) |
| Cooling System | Water |
| Fuel Tank Capacity | 50 Litres |
| Fuel Consumption @ 75% | 5.1 Litres/Hour |
