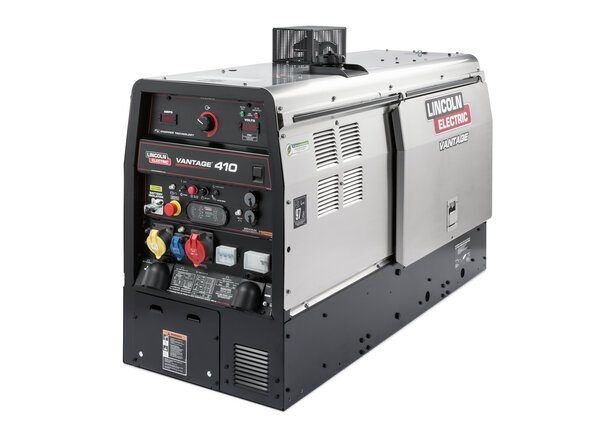

Lincoln Vantage 410 CE Diesel Engine Driven 410A Welder
£22,900.00 ex.VAT
CUSTOM BUILT TO ORDER, PLEASE CONTACT US FOR ALL ENQUIRES.
SPECIAL PROMO PRICE.
MARKED AS IN STOCK BUT EXPECTED DELIVERY TIME 4-6 WEEKS
Rugged and Durable Construction of Lincoln Vantage 410 CE Welder
Engineered with advanced technology, the Lincoln Vantage 410 CE Diesel Engine Driven 410A Welder is a high-quality welding machine. That delivers superior performance and reliability in a wide range of welding applications. This welding machine provides maximum power, efficiency, and flexibility. Which makes it an excellent choice for professional welders and DIY enthusiasts alike.
Exceptional Welding Performance
Powered by a powerful diesel engine, the Vantage 410 CE Welder provides exceptional welding performance, even in the toughest welding conditions. This welding machine is capable of producing up to 410 amps of welding power. That makes it ideal for heavy-duty welding jobs.
Advanced Features of the Vantage 410 CE Welder
The Vantage 410 CE Welder features a user-friendly control panel that makes it easy to operate, even for beginners. The control panel includes a digital display that provides real-time information on the welding process. This makes it easy to monitor and adjust the welding parameters as needed.
This welding machine also comes equipped with a variety of advanced features that enhance its performance and versatility. These features include a high-frequency arc starter, a fully enclosed case for maximum protection against harsh welding environments, and a low noise level for operator comfort.
The Vantage 410 CE Welder is designed with a compact and lightweight construction, making it easy to transport and store. This welding machine is also engineered with durable materials that ensure its long-lasting performance and reliability, even in the most demanding welding applications.
Whether you’re a professional welder or a DIY enthusiast, the Lincoln Vantage 410 CE Diesel Engine Driven 410A Welder is a reliable and powerful welding machine that delivers exceptional welding results, making it a worthwhile investment for your welding needs.
A compact and powerful Lincoln Vantage® 410 CE engine-driven welder generator powered by a 22 hp Kubota® V1505 diesel engine. It also features patented Chopper Technology®. It is capable of
- up to 410 amps of DC multi-process welding.
- 115 and 230 VAC single phase
- 400 VAC three phase auxiliary power
A huge amount of AC generator power ensures high auxillary ouput on 3-phase or 1-phase capable of operating lights, grinders, power tools and inverter welding machines.
3 to 4 weeks delivery.
Check more mig-welders and tig-welders
Click here to read some important safety measures for welding
Check out more products at Linc weld
Related products
Lincoln Bester 190C Multi MIG TIG MMA Welding Machine
Lincoln Speedtec 200C Multi Process Welder
Technical Specification Lincoln Speedtec 200C Multi Process Welder
- Input power: 115-230/1/50/60
- Rated output: 200A/24V@25%
- Input current: 16A
- Output range: 20-200A
- Solid wire size range: 0.6-1.0mm
- Cored wire size range: 0.9-1.1mm
- Wire feed speed range: 1-15 m/min
- Machine dimensions: 396mm x 246mm x 527mm
- Machine weight: 17.2Kg
Galaxy 400T Duo without accessories Pulse MIG
MULTI-PROCESS
MIG/MAG Pulse: This adaptable unit can be equipped with the optional WF 36 wire feeder, allowing quick switching between two wire types or diameters.
-
Steel and stainless steel wire: Ø 0.6 to 1.2 mm
-
Aluminium wire: Ø 0.8 to 1.2 mm
-
Flux-cored wire (inverted polarity): Ø 0.9 to 1.6 mm
MMA DC / Pulse: compatible with basic and rutile electrodes.
TIG DC Lift / Pulse.
PREMIUM MIG/MAG WELDING
4 selectable welding modes:
-
Standard: ideal for quick and easy welding tasks.
-
Pulse: minimises spatter and touch-ups across all welding positions.
-
ModulArc: excellent for welding aluminium alloys with a high-quality finish.
-
Manual: tailored for skilled welders and DMOS-specific work.
Advanced arc control ensures immediate ignition and prevents cratering at the end of the weld.
Pulse arc mode enables up to 30% faster welding speeds.
4-roll motorised wire feeder with digital encoder for accurate wire delivery.
INTELLIGENT
-
Over 40 synergic programs for materials like Steel, AlMg, AlSi, CrNi, and CuSi
-
Intuitive and multilingual 3.5’’ HMI interface
-
Complete machine and synergy updates via USB stick
-
Stores up to 200 welding jobs for recurring tasks
-
Portability mode for transferring JOBS and system settings via USB
-
Weld traceability compliant with EN 3834 standards
-
Calibration mode for voltage adjustment using external accessories
-
Multi-user mode for shared machine access
-
Free online platform for customising the interface
ERGONOMIC
-
Automatic wire feeder selection via torch trigger or thumbwheel control
-
Tool-free cable connections on the rear panel for quick setup
-
Four lifting points for safe and easy transport
-
Lowered gas cylinder holder for simplified loading (up to 10 m³)
-
IP23S protection for use in demanding environments
-
Integrated storage compartment
-
Quick polarity switch on the front panel
-
LED illumination on wire feeder and spool section
-
Transparent viewing window to easily check filler wire usage
Genset MPM 5/200 I-EL/H Petrol Welder Generator
Genset MPM 5/200 I-EL/H Petrol Welder Generator
The Genset MPM 5/200 petrol welder generator is an Italian made petrol engine driven welder generator. A stepless welding current adjustment from 30A to 200A allows the user to run up to 4mm welding rods (including cellulosic). The generator side of this Genset offers both a 110V socket and a 230V socket, perfect for on site work, running angle grinders, lighting etc. Portable, compact, lightweight and easily transportable engine driven welder, is equipped with Honda 3000 RPM engine and is fitted for remote control operation. An asyncronous alternator provides a better welding current quality, with a clean and distorsion free wave form. Just like all the GenSet engine driven welders it is designed to be used as both a generator and welder simultaneously, its simple and smart design allows easy handling too. Powered by a stage 5 compliant Honda GX390 engine, you can be rest assured that the machine is built to last and will stand up to Industrial use. Further features of the Genset MPM 5/200 is an electric start for easy starting, an arc force control switch and a voltmeter. A socket on the front of the machine accepts the connection of a remote control, for amperage control without having to move backwards and forwards to the machine.FEATURES
- Welding with cellulosic electrode
- Stepless current adjustment
- Remote control socket
- Arc Force Control switch
- Low oil level cut out device
- Earth leakage circuit breaker
- Power output protection
- 1 x 16A / 230V single phase EEC socket (2kVA)
- 1 x 16A / 110V single phase EEC socket (3.6kVA)
- Voltmeter
DC WELDING
| Amps range | 30 – 200A |
| Duty cycle @ 35% | 200A – 28V |
| Duty cycle @ 60% | 150A – 26V |
| Open Circuit Voltage (OCV) | 70V |
| Max Welding Rod | 4mm |
PETROL ENGINE
| Type | Honda GX390 – 1 Cylinder – 390cm³ |
| Max Power | 11HP (8.2kW) |
| Cooling System | Air |
| Fuel Tank Capacity | 6.1 Litres |
| Fuel Consumption @ 75% | 3.3 Litres/Hour |
DIMENSIONS
Measurement: 720mm x 480mm x 515mm (L x W x H) Dry Weight: 96KG Genset MPM 9/300 I-Y Diesel Welder Generator (Yanmar)
GENSET 300 IY DIESEL WELDER GENERATOR (YANMAR ENGINE)
The Genset 300 IY diesel welder generator is an Italian made machine offering 300 amps welding output, as well as 110, 230 and 400V power too. Fairly lightweight within its class, we have found these to be a good solution for vehicle mounted welding plant. Couple this with the ability to use a MIG wire feed unit thanks to the constant current, constant voltage welding output, it is an ideal mobile welding set. Further features include engine auto idle, a remote control socket and an arc force control switch. A Yanmar diesel engine powers this capable Genset, allowing welding of up to 6mm electrodes. Its many features and quality build enable this machine to be used for the most industrial of applications.FEATURES
- Controller (DSE 3110) with digital display for full monitoring of generator parameters
- Fuel level gauge
- Remote control socket
- Automatic idle device when no load is connected
- 1 x 16A 400V Three phase EEC socket
- 1 x 32A 230V Single phase EEC socket
- 1 x 32A 110V Single phase EEC socket
- Earth leakage circuit breaker
- 12V battery
- Hourmeter
- Emergency stop button
- Central lifting eye
DC WELDING
| Amps range | 30 – 300A |
| Duty cycle @ 35% | 300A – 32V |
| Duty cycle @ 60% | 270A – 31V |
| Open Circuit Voltage (OCV) | 70V |
| Max Welding Rod | 6mm |
DIESEL ENGINE
| Type | Yanmar – 3 Cylinder – 904cm³ |
| Max Power | 19.4HP (14.4kW/m) |
| Cooling System | Water |
| Fuel Tank Capacity | 50 Litres |
| Fuel Consumption @ 75% | 5.1 Litres/Hour |
