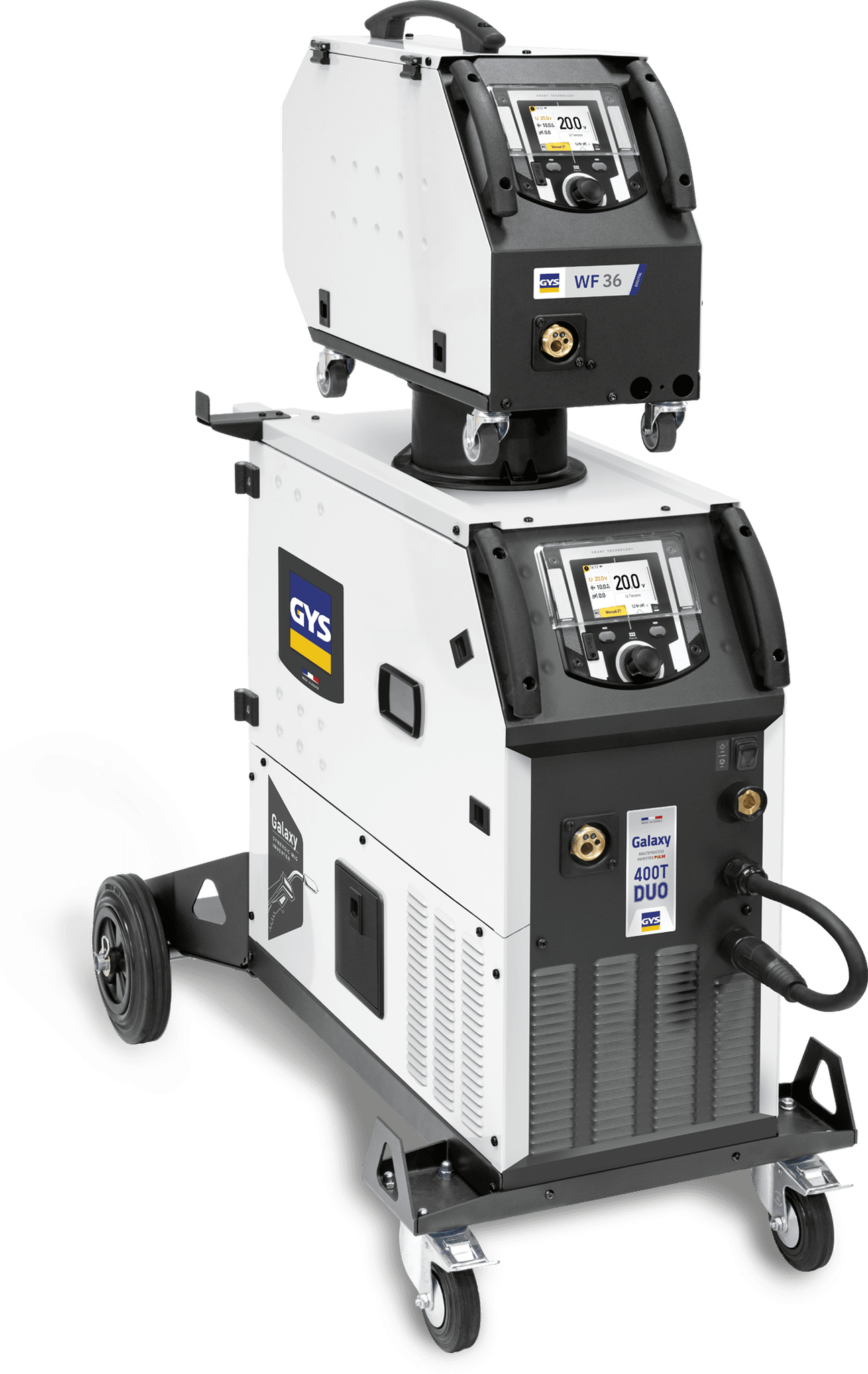

Galaxy 400T Duo without accessories Pulse MIG

PARWELD XTM 256i MIG WELDING INVERTER

The Parweld XTM 256i is the brand new, three phase inverter MIG welder. This Multi-process MIG Machine can also deliver Lift TIG and MMA, so you can get all your favourite processes in one system. This high-performance inverter is suitable for use with a 5kg (200mm) or 15kg (300mm) wire spool and puts out 250A of power. The XTM 256i MIG is also suitable for welding materials with ease using anywhere between 0.6 – 1.2mm MIG wire. Suitable for everyone from absolute beginners to professionals with decades of experience!

FUNCTIONS

Infinite control of both volts (MIG Range: 14.5 – 26.5V) and wire feed speed allows the user to adjust parameters to achieve optimum settings for the perfect weld. LED digital display show all parameters in real time for quick, easy, and accurate adjustment of weld settings.  A settings chart inside the wire feed door show quick and easy reference voltage and wire feed settings for optimal set up. Fitted with a set of quality 4 roll wire feed rollers, ensuring hassle free and smooth wire feed with even the most delicate MIG wire materials. A set of 0.8/1.0 V groove rollers comes included with the standard machine. 2T/4T control functions available. 2T is a simple press-on/lift-off button control, which keeps the current running when pressed down and cuts power when not. 4T is a system where, once the button is pressed, the arc will stay running until the button is pressed again, making it ideal for longer welding runs. An industry-standard euro torch connection allows the use of all good quality MIG torches. P1 Package supplied with the Parweld XP200A 4 metre MIG torch. Perfect for in the workshop the Parweld XTM 256i is supplied pre-built on a trolley, complete with a drawer and an integrated gas bottle shelf behind the machine. The XTM 256I supports lift TIG functionality, with a connection for a switch plug and a gas connection.  Many machines with Lift TIG functionality do not have these features.  Gas is often controlled via a manual gas valve on the torch which can be fiddly and waste gas!  Press the trigger on the optional TIG torch to start pre flow and start the weld and finish the weld when releasing the button.

WHAT IS SYNERGIC PROGRAMMING?

Parweld have designed this MIG inverter with ease-of-use in mind, and thanks to their synergic control, finding the optimal settings has never been easier. Synergic programming, as seen in the XTM 256i MIG Inverter, is a self-adjusting parameter set-up. Simply input your wire type and diameter, then select your amperage and the machine will adjust accordingly. It couldn’t be easier. Suitable for those still learning to weld or for the pros that want a simpler way of finding their optimum settings. This is the perfect beginner’s welding machine.  To fine tune the settings, a voltage trim is available to dial in the weld characteristics.

KEY FEATURES

• Weld Steel, Stainless Steel, Aluminium, or flux cored gasless
• 110V / 230V single phase
• Duty cycle:
  • 400V 250A @35%
• 4 roll drive wire feeder
• Infinitely adjustable voltage (14.5 – 26.5V)
• Burnback control
• Polarity switching for running gasless or solid MIG wires.
• Adjustable inductance.
• Choose between manual set up or synergic
• 2T – Hold button in to weld and release when finished
• 4T – Press and release to start, press and release to finish
• Fan on demand for quiet and energy efficient operation
• Takes 5KG or 15KG MIG wire spools
• Supplied with Parweld MIG torch (XP200A 4m)
• 3 year no quibble return to base warranty
• Manufactured to IP21S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant



TECHNICAL INFORMATION
Style	Portable
Machine Type	Inverter MIG/TIG/MMA
Voltage Range	MIG 14.5-26.5V  TIG 10.4-20V MMA 20.4-30V
Spool Size	300mm (15kg) 200mm (5kg)
Feed Box	4 Roll
Wire Size	0.6 – 1.2 mm
Duty Cycle	250A @ 35%
Input Voltage	400V
Maximum Current	250A
Input Current (Eff)	MIG – 9.3A  TIG – 7.9A MMA – 10.9A
Minimum Fuse Rating	20A
KVA	11.6
Generator Size	13 KVA
Enclosure Protection	IP23S
Dimensions (LxWxH mm)	660 x 280 x 500
Weight (kg)	23



PACKAGES (Select from drop down)

SUPPLIED WITH
Machine with trolley (XTM256i)	Power source with trolley, work return lead, and gas hose
Machine and P1 Package (XTM256i-P1)	Power source with trolley, work return lead, gas hose, XP200A 4m long MIG torch, and gas regulator
Machine and P2 Package (XTM256i-P2)	Power source with trolley, work return lead, gas hose, XP200A 4m long MIG torch, PRO26 12ft TIG torch, 3m MMA electrode lead, and gas regulator
