Parweld XTP 103 Inverter Plasma Cutter
£2,090.00 ex.VAT
Parweld XTM 256i Inverter MIG Welder
£859.00 ex.VAT

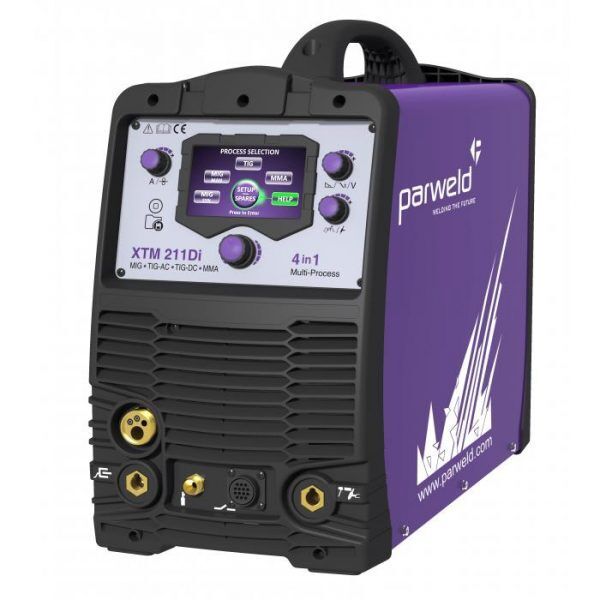

Parweld XTM 211Di MIG Inverter 4-in-1 | Dual Voltage
£1,489.00 ex.VAT
Parweld XTM 211DI 4-in-1 Multi-Process MIG Inverter with AC/DC TIG & MMA
XTM 211DI Parweld Multiprocess – P2 Package Machine, TIG Torch and MIG Torch Package
The Parweld XTM211Di is a 4-in-1 multi-process MIG inverter that also carries the capabilities for DC TIG, AC TIG and MMA, all in one machine. High quality build and excellent functionality for outstanding welding characteristics on every weld.
The XTM211 DI is unique from other multi-mode MIG machines in that it comes equipped with capabilities for AC/DC TIG.
This machine is also set up for hosting both a MIG and TIG torch at the same time, as well as quick switching between TIG and MIG, for swift and easy use. To switch to MIG from TIG, simply put down the TIG torch, pick up the MIG one and press the trigger. The XTM 211 will detect the change in torches and automatically switch over to the correct function for you. Vice versa is also true of the MIG to TIG torches. This functionality also extends to the gases too. You can have both Argon and Argon Mix plugged into the machine and the inverter will switch between the gases automatically based on which process it detects is being used.
Features:
Auto polarity switching inside. Changing the work lead connections on the front of the machine is a thing of the past.
Instant swapping between MIG and TIG processes available with one touch of a torch trigger, thus perfect for a versatile workshop, able to switch between any job or any part of a job with the press of a button.
Modern, multi-language digital user interface/display, alongside simple and intuitive selection options, allows for easy navigation through the synergic programs on board. Appropriate for workshop and sitework.
Save and recall up to 9 job function settings for any desired process.
Superior arc control thanks to Pulse TIG function, for optimal heat control to ensure you don’t burn through your workpiece whilst welding it. Comes with HF (High Frequency) Start TIG ignition.
Synergic programming makes working out your weld settings easier than ever – by simply inputting the material and thickness of your desired workpiece, the inbuilt programming automatically calculates the optimum settings for you. Alternatively, for fine-tuning and to suit the more experienced welder, a manual setting selection mode is also available.
Connect to your smartphone via Bluetooth for modern control and parameter settings.
Machine comes with MMA lead set, 3m MIG Torch with Amperage Control, 12.5ft TIG Torch with Amperage Control, input cable and two gas hoses as standard.
SPECIFICATION
| Input Voltage (Smart Switching) | AC 110V – 50/60 Hz | AC 230V – 50/60 Hz |
| Min Fuse Rating | 32A | 16A |
| Input Power (kVA) | 3.7 | 3.7 |
| Max Current (A) | MIG 140
TIG 140 MMA 110 |
MIG 200
TIG 200 MMA 200 |
| Duty Cycle @ 40’C | MIG 200A @ 25% | |
| Generator size | 7 kVA | |
| Feed Roll | 2 Roll | |
| Wire Spool Size | 300mm 15KG 200mm 5KG | |
| Wire Size | 0.6 – 1.0mm | |
| Style | Portable | |
| Machine Type | Inverter | |
| Protection Class | IP23S | |
| Dimensions | 615 x 275 x 495 | |
| Weight (Kg) | 27.8 |
Description
Related products
GYS NEOPULSE 320C MIG Welder – 3 Phase
The NEOPULSE 320C is a digital 3 phase MIG/MAG pulse welding machine. It uses the latest technology to ensure the highest performance level. Digital interface is easy to use and practical, with a synergic mode which allows you to input details into your machine to ensure the perfect welding settings
Multiweld fv 220M Mig Machine
The MULTIWELD FV 220M is a single-phase welding machine, combining MIG/MAG, cored wire and MMA welding
processes. It operates on a supply voltage between 85 and 265 V thanks to its FV (Flexible Voltage) power supply. Its
intuitive interface integrates two digital displays offering simple and accurate settings. Fitted with an accurate and
powerful 4 drive roll feeding system, offering welding quality even on aluminium.
Parweld XTM 201DI Multi Process MIG Welder Package
KEY FEATURES
- Weld Steel, Stainless Steel or Aluminium
- 110 or 230V single phase (Smart switching)
- 200A @ 25% duty cycle
- 2 roll drive wire feeder
- Use gas with solid MIG wire or reverse polarity and use gas less, self shielding MIG wire
- Infinitely adjustable voltage (14.5 – 24V MIG) (10.4 – 18V TIG) (20.4 – 28V MMA)
- Infinitely variable wire feed speed (3.5 – 21m/min)
- Adjustable burnback control
- Variable inductance
- Overload warning indicator
- Built in gas valve for MIG and TIG processes
- Use 1kg or 5kg MIG wire spools
- Supplied with Parweld MIG torch – Integrated Knuckle Joint Systems allowing movements of the handle and neck independently from the cable assembly
- 3 year no quibble return to base warranty
- Manufactured to IP21S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant
- Current Range: 30 – 200A
- Single Phase 110/230V
- Weight: 17.5 Kg
- FREE 24HR DELIVERY
Parweld XTM 256i Inverter MIG Welder
PARWELD XTM 256i MIG WELDING INVERTER
The Parweld XTM 256i is the brand new, three phase inverter MIG welder. This Multi-process MIG Machine can also deliver Lift TIG and MMA, so you can get all your favourite processes in one system. This high-performance inverter is suitable for use with a 5kg (200mm) or 15kg (300mm) wire spool and puts out 250A of power. The XTM 256i MIG is also suitable for welding materials with ease using anywhere between 0.6 – 1.2mm MIG wire. Suitable for everyone from absolute beginners to professionals with decades of experience!FUNCTIONS
Infinite control of both volts (MIG Range: 14.5 – 26.5V) and wire feed speed allows the user to adjust parameters to achieve optimum settings for the perfect weld. LED digital display show all parameters in real time for quick, easy, and accurate adjustment of weld settings. A settings chart inside the wire feed door show quick and easy reference voltage and wire feed settings for optimal set up. Fitted with a set of quality 4 roll wire feed rollers, ensuring hassle free and smooth wire feed with even the most delicate MIG wire materials. A set of 0.8/1.0 V groove rollers comes included with the standard machine. 2T/4T control functions available. 2T is a simple press-on/lift-off button control, which keeps the current running when pressed down and cuts power when not. 4T is a system where, once the button is pressed, the arc will stay running until the button is pressed again, making it ideal for longer welding runs. An industry-standard euro torch connection allows the use of all good quality MIG torches. P1 Package supplied with the Parweld XP200A 4 metre MIG torch. Perfect for in the workshop the Parweld XTM 256i is supplied pre-built on a trolley, complete with a drawer and an integrated gas bottle shelf behind the machine. The XTM 256I supports lift TIG functionality, with a connection for a switch plug and a gas connection. Many machines with Lift TIG functionality do not have these features. Gas is often controlled via a manual gas valve on the torch which can be fiddly and waste gas! Press the trigger on the optional TIG torch to start pre flow and start the weld and finish the weld when releasing the button.WHAT IS SYNERGIC PROGRAMMING?
Parweld have designed this MIG inverter with ease-of-use in mind, and thanks to their synergic control, finding the optimal settings has never been easier. Synergic programming, as seen in the XTM 256i MIG Inverter, is a self-adjusting parameter set-up. Simply input your wire type and diameter, then select your amperage and the machine will adjust accordingly. It couldn’t be easier. Suitable for those still learning to weld or for the pros that want a simpler way of finding their optimum settings. This is the perfect beginner’s welding machine. To fine tune the settings, a voltage trim is available to dial in the weld characteristics.
KEY FEATURES
- Weld Steel, Stainless Steel, Aluminium, or flux cored gasless
- 110V / 230V single phase
- Duty cycle:
- 400V 250A @35%
- 4 roll drive wire feeder
- Infinitely adjustable voltage (14.5 – 26.5V)
- Burnback control
- Polarity switching for running gasless or solid MIG wires.
- Adjustable inductance.
- Choose between manual set up or synergic
- 2T – Hold button in to weld and release when finished
- 4T – Press and release to start, press and release to finish
- Fan on demand for quiet and energy efficient operation
- Takes 5KG or 15KG MIG wire spools
- Supplied with Parweld MIG torch (XP200A 4m)
- 3 year no quibble return to base warranty
- Manufactured to IP21S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant
TECHNICAL INFORMATION |
|
| Style | Portable |
| Machine Type | Inverter MIG/TIG/MMA |
| Voltage Range | MIG 14.5-26.5V TIG 10.4-20V MMA 20.4-30V |
| Spool Size | 300mm (15kg) 200mm (5kg) |
| Feed Box | 4 Roll |
| Wire Size | 0.6 – 1.2 mm |
| Duty Cycle | 250A @ 35% |
| Input Voltage | 400V |
| Maximum Current | 250A |
| Input Current (Eff) | MIG – 9.3A TIG – 7.9A MMA – 10.9A |
| Minimum Fuse Rating | 20A |
| KVA | 11.6 |
| Generator Size | 13 KVA |
| Enclosure Protection | IP23S |
| Dimensions (LxWxH mm) | 660 x 280 x 500 |
| Weight (kg) | 23 |
PACKAGES (Select from drop down)
SUPPLIED WITH |
|
| Machine with trolley (XTM256i) | Power source with trolley, work return lead, and gas hose |
| Machine and P1 Package (XTM256i-P1) | Power source with trolley, work return lead, gas hose, XP200A 4m long MIG torch, and gas regulator |
| Machine and P2 Package (XTM256i-P2) | Power source with trolley, work return lead, gas hose, XP200A 4m long MIG torch, PRO26 12ft TIG torch, 3m MMA electrode lead, and gas regulator |
Lincoln Bester 190C Multi MIG TIG MMA Welding Machine
Please be advised this machine takes 5KG wire not 15kg
Lincoln Electric presents the Bester 190C Multi Process Inverter Welder. This 180A compact inverter based welding machine is an excellent option for MIG/ TIG Lift and MMA applications. Designed to be portable everywhere you go within your workshops and working environments
Packed Dimensions: Height 34cm x Width 26cm x Depth 56cm
Gross Weight: 17kg each
