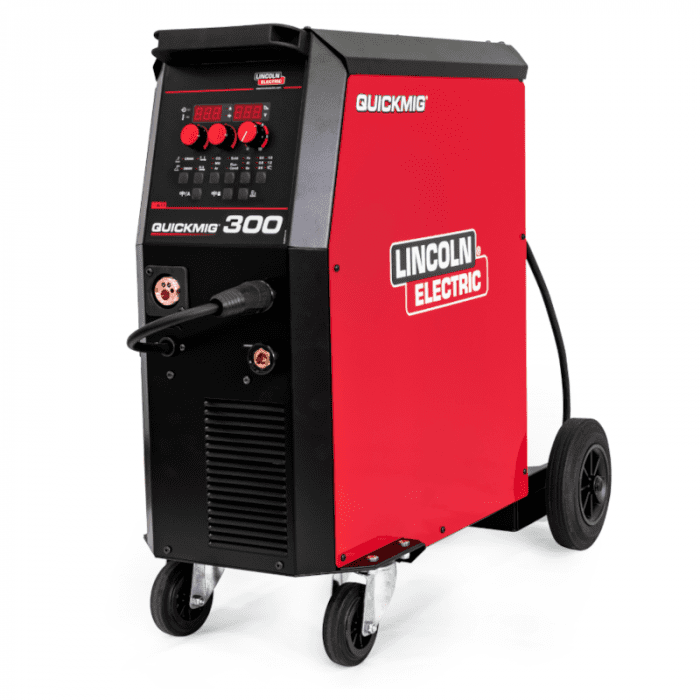

Lincoln Electric QuickMIG 300 MIG Welder – 400V
£1,395.00 ex.VAT
Lincoln MIG Welding Compact Package QuickMIG 300 includes:
- Input cable (3m)
- Ground cable (3m)
- Gas hose (2m)
- Drive roll for solid wire 0.8-1.0 mm
- USB with Operator’s Manual
- Please contact us for torch options
This 3-phase synergic Lincoln Electric QuickMIG 300 MIG Welder – 400V tackles tough jobs. With smooth wire feeding and precise digital controls, it handles various materials up to 12mm thick. Plus, its rugged build is ideal for daily use in industrial settings, making it perfect for those who weld day in and day out. The QuickMIG 300 even meets the calibration standards for structural steelwork (BS EN 1090).
Key Features of Lincoln Electric QuickMIG 300 MIG Welder – 400V:
- Multi-process capability: Supports MIG/MAG, FCAW, and MMA (SMAW) welding.
- Manual and synergic control modes available: Offers 24 synergic programs for carbon steel, stainless steel, aluminum, and flux-cored welding.
- 4-roll wire feeder: Facilitates seamless wire feeding on all materials, including soft aluminum wire.
- Convenient wire spool installation: Easy access provided for hassle-free wire spool installation.
- Enhanced mobility: Features large rear wheels and a low gas cylinder tray for easy loading.
- Clear parameter display: Equipped with a large LED display for easy monitoring of welding parameters
Technical Specifications:
- Input voltage: 400V (3 phase)
- Input current: 16A
- Weight: 50KG
- Output current range: 50A – 250A
- Duty cycle: 100% at 175 amps, 60% at 230 amps & 35% at 250 amps
- Wire feed speed range: 1.5M – 18M per minute
- Protection class: IP23
- Dimensions: 760MM x 395MM x 830MM
- Wire feed range: Solid 0.6MM – 1.2MM, Cored 0.8MM – 1.0MM & 1.0MM – 1.2MM Aluminium
- Maximum wire reel size: 15KG (300MM)
Machine Only, Please Contact us if a torch is needed with this Product.
Note: This outstanding machine also backed up by a UK supported 2 year warranty. We do have a variety of Lincoln MIG welding machines to fit your welding needs. Shop now!
