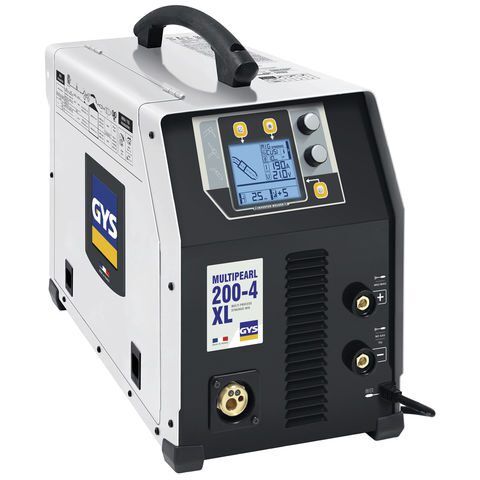

GYS Multi-Pearl 200.4XL Multi-Process 1ph Dual Voltage MIG/TIG/MMA 200Amp
£1,190.00 ex.VAT
Featuring inverter technology, the MULTIPEARL 200.4XL combines the MIG, TIG and MMA processes in a single product. Compact and lightweight, it will be an ideal ally on site and in maintenance workshops. It is suitable for welding most common materials (steel, stainless steel, aluminium and MIG brazing CuSi3).
Full product description of GYS Multi-Pearl
GYS Multi-Pearl
Featuring inverter technology, the MULTIPEARL 200.4XL combines the MIG, TIG and MMA processes in a single product. Compact and lightweight, it will be an ideal ally on site and in maintenance workshops. It is suitable for welding most common materials (steel, stainless steel, aluminium and MIG brazing CuSi3).
The welding current ranges from 20 to 200Amp in MIG and 10 to 200Amp in TIG/MMA (arc) and welding steel wire from Ø 0.6 to 1.0mm and aluminium wire from Ø 0.8 to 1.0mm. It can also weld gasless using a cored wire.
The Multipearl has synergic control in MIG mode (10 synergies recorded) just enter material type/thickness, wire size & gas used & the machine sets the power & wire speed automatically. It features a 4 roller wire feed system making it ideal for welding aluminium, takes 5kg or 15kg wire reels. It is also capable of welding in DC TIG mode with TIG LIFT arc ignition (optional TIG torch required).
MMA mode features Hotstart for easy arc striking & has an adjustable arc force function (low for thin material, high for thicker material). The ergonomic and intuitive interface makes set up fast & easy. PFC technology allows use on 13Amp supply & on long extension leads (up to 100m).
Single-phase power supply either 110V or 240V – 16A (PFC & FV technologies).
- Input voltage 85V to 265V
- Welding Range 20-200Amps MIG
- Takes 0.6-1mm wire
- 200Amps from13A supply
- Generator Requirement 7.5kW or 9kVA
Here at lincweld, we work hard to make sure all our customers get the best product. They need it at the right price.
We have a wide collection of mig, tig, and stick welding machines available. check them out.
