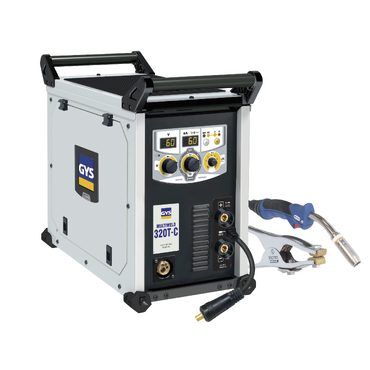

MULTIWELD 320T-C MIG/MAG/MMA Package
£1,150.00 ex.VAT
MULTI-PROCESS MACHINE
- MIG/MAG welding:
– steel wire: Ø 0.6- 1.2 mm
– stainless-steel wire: Ø 0.8 – 1.2 mm
– aluminium wire: Ø 0.8 and 1.0 mm
– flux-cored wire (polarity inversion): Ø 0.9 – 1.2 mm
- MMA welding: basic and rutile electrodes (up to Ø 6 mm)
ADVANCED MIG/MAG SETTINGS
- Choice of trigger performance: 2T or 4T
- Welding support chart: a chart on the machine’s side helps the user adjust the tension and diameter of the filler wire according to the thickness of the material being welded.
INTUITIVE
- Display screen can be easily read, even in bright light.
- Easy to alter the settings using the machine’s simple user interface with accessible knobs and buttons suitable for gloved hands.
BUILT-IN WIRE-FEED REEL
- Compatible reels: Ø 200 / 300 mm.
- Powerful, four-roller, motorised wire-feed rollers for efficient unwinding.
- European torch connection for quick assembly/disassembly.
PURE CO2-GAS PREHEATING
- Pre-installed socket (36 V / 4.2 A) for heating gas in pure CO2 welding (heater not included).
- Compatible with US (type A) and EURO (types C/E/F) electrical sockets.
ROBUST
- IP 23 classification for outside use.
- Reinforced structure.
- 2 steel handles for easy manipulation.
Description
The MULTIWELD 320T-C is a compact, three-phase welding machine that combines MIG/MAG, flux-cored wire and MMA welding processes. Equipped with a precise and powerful four-roller wire-feed system, the MULTIWELD 320T- C can weld Ø 1.2 mm wire effortlessly. Its reinforced structure, with two handles for lifting and carrying, is perfectly suited for workshops and quick on-site repairs.
Related products
Multiweld fv 220M Mig Machine
The MULTIWELD FV 220M is a single-phase welding machine, combining MIG/MAG, cored wire and MMA welding
processes. It operates on a supply voltage between 85 and 265 V thanks to its FV (Flexible Voltage) power supply. Its
intuitive interface integrates two digital displays offering simple and accurate settings. Fitted with an accurate and
powerful 4 drive roll feeding system, offering welding quality even on aluminium.
Lincoln Speedtec 200C Multi Process Welder
Technical Specification Lincoln Speedtec 200C Multi Process Welder
- Input power: 115-230/1/50/60
- Rated output: 200A/24V@25%
- Input current: 16A
- Output range: 20-200A
- Solid wire size range: 0.6-1.0mm
- Cored wire size range: 0.9-1.1mm
- Wire feed speed range: 1-15 m/min
- Machine dimensions: 396mm x 246mm x 527mm
- Machine weight: 17.2Kg
GYS Multi-Pearl 200.4XL Multi-Process 1ph Dual Voltage MIG/TIG/MMA 200Amp
Featuring inverter technology, the MULTIPEARL 200.4XL combines the MIG, TIG and MMA processes in a single product. Compact and lightweight, it will be an ideal ally on site and in maintenance workshops. It is suitable for welding most common materials (steel, stainless steel, aluminium and MIG brazing CuSi3).
Parweld XTM 201i MIG Welder
PARWELD XTM 201i MIG WELDING INVERTER
Parwelds smallest inverter MIG welder, the XTM 201i is suitable for use with both gas using solid wire or with gasless flux cored MIG wire. Welds materials up to 4mm with ease using either 0.8 or 1.0mm MIG wire. Synergic control of both volts and wire feed speed allows the user to infinitely adjust parameters to achieve optimum settings for the perfect weld. Digital displays show volts and wire feed speed, changing to amperage during the weld. A quality 2 roll wire feed ensures hassle free and smooth wire feed. A guide roller is included with the machine with grooves for both 0.8 and 1.0mm wires, easily changeable by removing and turning the roller. An industry standard euro torch connection allows the use of all good quality MIG torches. Supplied with the Parweld Eco-grip Max 150A MIG torch, taking industry standard Binzel style spares available from any welding supplier. Perfect for in the workshop or for mobile use, the Parweld XTM range of machines are lightweight and housed in rugged cases for durability.KEY FEATURES
- Weld Steel, Stainless Steel or Aluminium (up to 4mm thickness)
- 230V single phase
- 200A @ 25% duty cycle
- 2 roll drive wire feeder
- Use gas with solid MIG wire or reverse polarity and use gas less, self shielding MIG wire
- Infinitely adjustable voltage (18 – 26.5V)
- Infinitely variable wire feed speed (2 – 18m/min)
- Adjustable burnback control
- Variable inductance
- Overload warning indicator
- Built in gas valve
- Use 5kg MIG wire spools
- Supplied with Parweld MIG torch – Integrated Knuckle Joint Systems allowing movements of the handle and neck independently from the cable assembly
- 3 year no quibble return to base warranty
- Manufactured to IP21S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant
SPECIFICATION
| Input Supply 50/60Hz | Fuse amps | Max current | Wire size | Duty Cycle | Dimensions / Weight | Generator requirements (+/-15%) |
| 230V | 16A | 200A | 0.8 – 1.0mm | 200A @ 25% | 469 x 223 x 421 mm / 15.5kg | 7 kVA |
