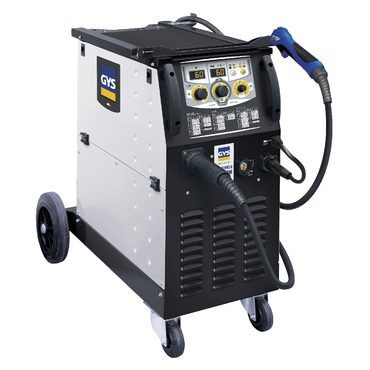

Multiweld fv 220M Mig Machine
£960.00 ex.VAT
The MULTIWELD FV 220M is a single-phase welding machine, combining MIG/MAG, cored wire and MMA welding
processes. It operates on a supply voltage between 85 and 265 V thanks to its FV (Flexible Voltage) power supply. Its
intuitive interface integrates two digital displays offering simple and accurate settings. Fitted with an accurate and
powerful 4 drive roll feeding system, offering welding quality even on aluminium.
Multiprocess
MIG/MAG welding :
– steel wire: Ø 0.6 to 1.0 mm
– stainless steel wire: Ø 0.8 to 1.0 mm
– aluminium wire: Ø 0.8 and 1.0 mm
– cored wire (reverse polarity): Ø 0.9 to 1.2 mm
MMA welding: basic and rutile electrodes (up to Ø 5 mm)
Optimised MIG/MAG Setting
Choice of the trigger mode: 2T or 4T.
Welding guide: tables assist the user to adjust and fine tune the voltage and the
diameter of the filler wire according to the thickness of material being welded.
Intuitive
Display readable even in bright light.
Simple user interface with ergonomic controls allowing gloved
use.
### full Data Sheet### 065482
