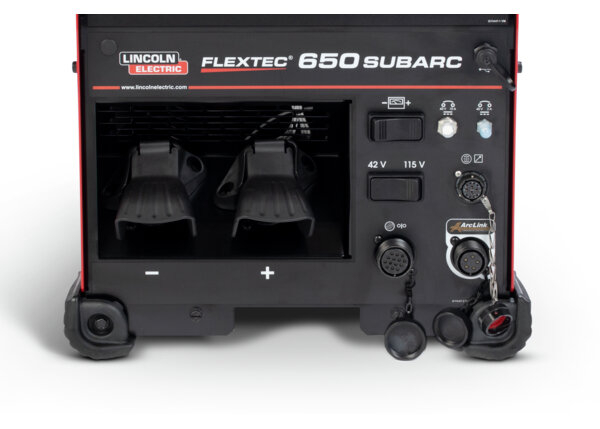

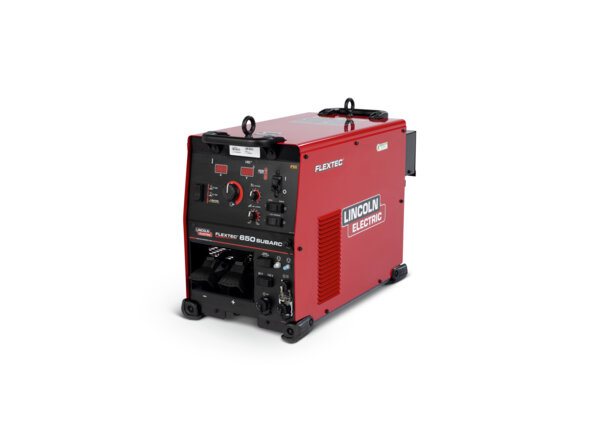

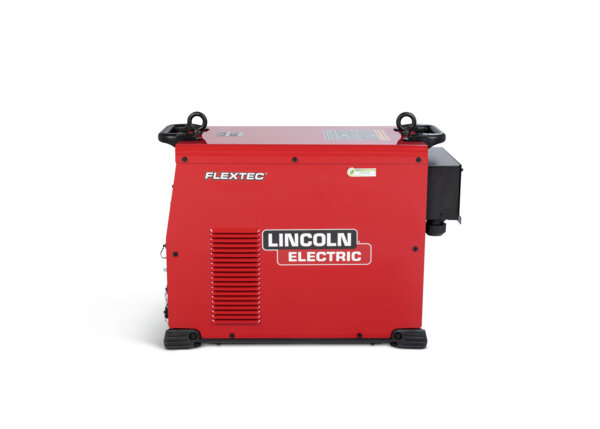

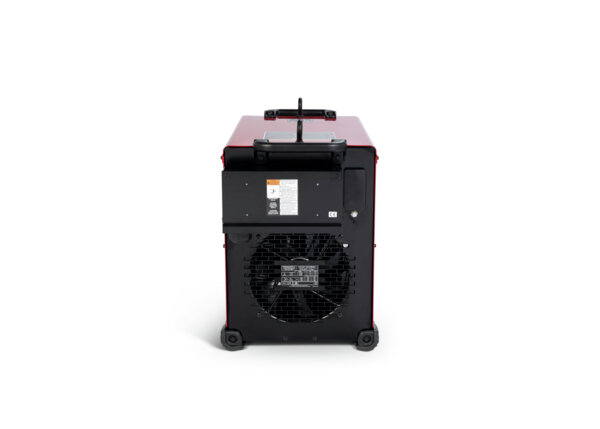

Lincoln Subarc Flextec 650 ce
Original price was: £16,890.88.£13,609.00Current price is: £13,609.00. ex.VAT
Key Features
✔ Up to 815A welding output
✔ Constant Current and Constant Voltage operation
✔ Compatible with submerged arc welding systems
✔ Supports ArcLink digital controllers
✔ Compatible with 115V and 42V analogue wire feeders
✔ Easy one knob process selection
✔ Designed for continuous industrial use
✔ Ideal for shipbuilding, construction and heavy fabrication
✔ Compatible with LT-7 Tractor and Cruiser Tractor systems
Applications
- Submerged Arc Welding (SAW)
- Shipbuilding
- Structural Steel Fabrication
- Pressure Vessel Manufacturing
- Heavy Equipment Manufacturing
- Construction Projects
- Automated Welding Systems
For expert advice, installation support and competitive pricing on the Lincoln Electric DC-1000, contact Lincweld Industrial Supplies, an authorised Lincoln Electric distributor and service centre.
Description
Lincoln Electric DC-1000 Submerged Arc Welder
The Lincoln Electric DC-1000 is a high performance submerged arc welding power source designed for demanding industrial applications. Delivering up to 815 amps of constant current and constant voltage welding output, it is ideal for construction, shipbuilding, heavy fabrication and automated welding environments.
Built for reliability, the DC-1000 features robust internal components designed to operate at lower temperatures, helping extend service life even in harsh production environments. Its simple one knob process selection allows operators to quickly switch between welding processes while maintaining maximum productivity.
Compatible with a wide range of 3 phase input voltages, the DC-1000 offers excellent flexibility for industrial facilities worldwide. It supports both traditional 115V and 42V analogue wire feeders as well as advanced digital ArcLink control systems for enhanced automation and control.
