Lincoln Electric Yardtec 300c Multi Process Welding Machine
Original price was: £2,999.00.£2,398.00Current price is: £2,398.00. ex.VAT
Technical Specification
Lincoln Electric YARDTEC® 300C STANDARD Portable Multi Process Welder
Portable Industrial Welding Power for Site, Shipyard and Construction Applications
The Lincoln Electric YARDTEC® 300C STANDARD is a powerful, lightweight, and highly portable multi process welding machine designed specifically for demanding industrial environments. Ideal for shipyards, construction sites, fabrication workshops, maintenance teams, and repair operations, this compact welding system combines exceptional performance with outstanding mobility and is setting a new benchmark for portable multi process welder solutions.
Weighing only 18kg (excluding wire spool), the YARDTEC® 300C STANDARD is easy to transport around large industrial facilities, making it the perfect solution when access is restricted or welding needs to be carried out in difficult to reach locations. In these scenarios, using a multi process welder that is portable is a major advantage.
Built for Harsh Welding Environments
Designed and tested to withstand tough site conditions, the YARDTEC® 300C STANDARD features a rugged metal construction, fully potted electronic boards, and an IP23 protection rating. Whether working in fabrication yards, heavy engineering facilities, offshore environments, or construction projects, this machine delivers dependable performance day after day, making it a favorite multi process welder for those who need true portability.
Its compact dimensions of just 381mm x 230mm x 498mm allow operators to work efficiently in confined spaces while maintaining full industrial welding capability—which is a major benefit for anyone needing a truly portable multi-process welder.
Outstanding Welding Performance
The YARDTEC® 300C STANDARD delivers impressive output performance, blending the capabilities of a portable design with the flexibility of a multi process welder.
- 300A @ 30% Duty Cycle
- 200A @ 100% Duty Cycle
- Digital Welding Current Control
- Professional Two Roll Wire Feed System
- Generator Compatible
- Voltage Reduction Device (VRD) for enhanced safety
With dual voltage capability, the machine operates on both: The dual voltage system extends the versatility of this portable multi-process welder to a much broader range of job sites and requirements.
- 3 x 230V ±10%
- 3 x 400V ±15%
- 50/60Hz Power Supply
This flexibility makes it ideal for workshops, site work, maintenance contractors, and industrial welding applications where the advantages of a portable multi-process welder are invaluable.

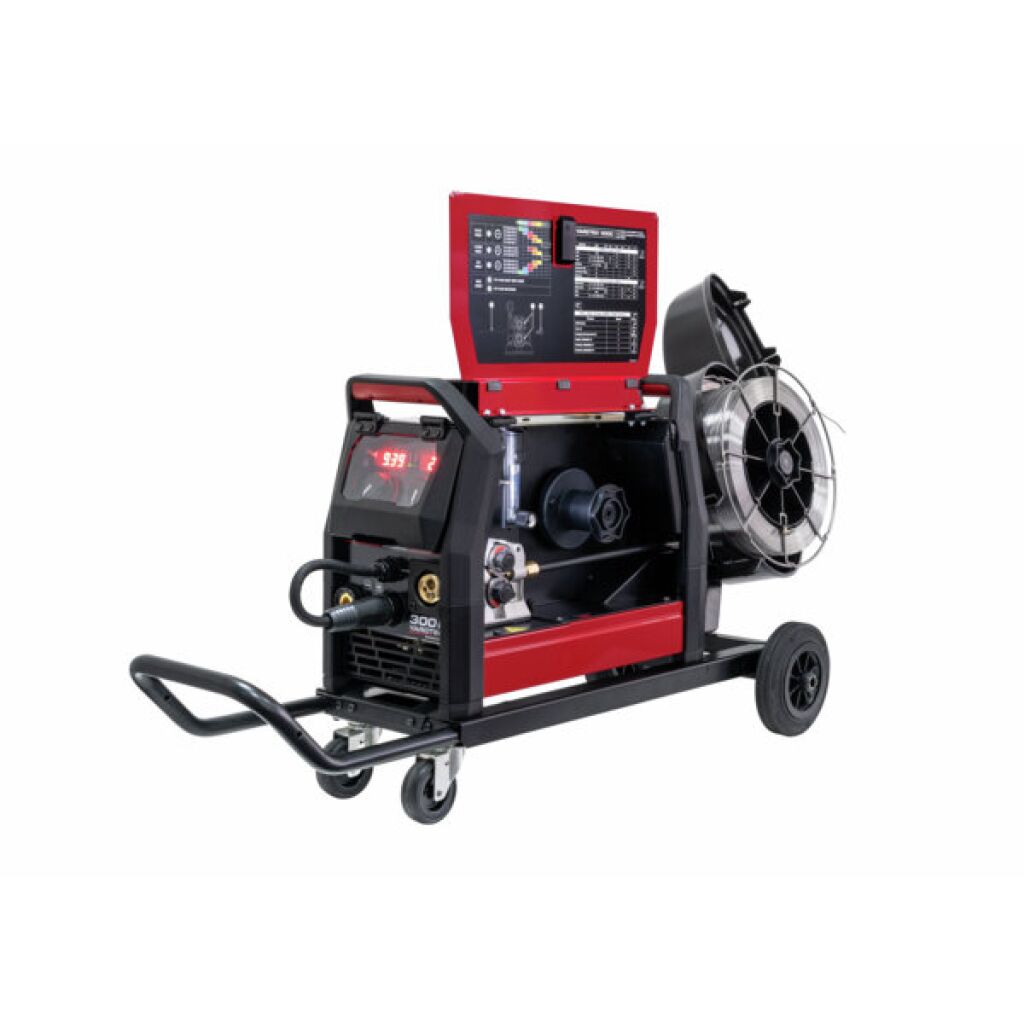

Professional Wire Feeding System
The YARDTEC® 300C STANDARD has been engineered to provide smooth and reliable wire feeding under demanding working conditions you’ll face with any portable multi process welder.
Features include:
- Professional Two Roll Drive System
- Internal LED Lighting for improved visibility
- Quick Access Side Opening Cover
- Integrated Gas Flow Regulator
- Large Spool and Drum Feeding Capability
- Tool Free Polarity Change

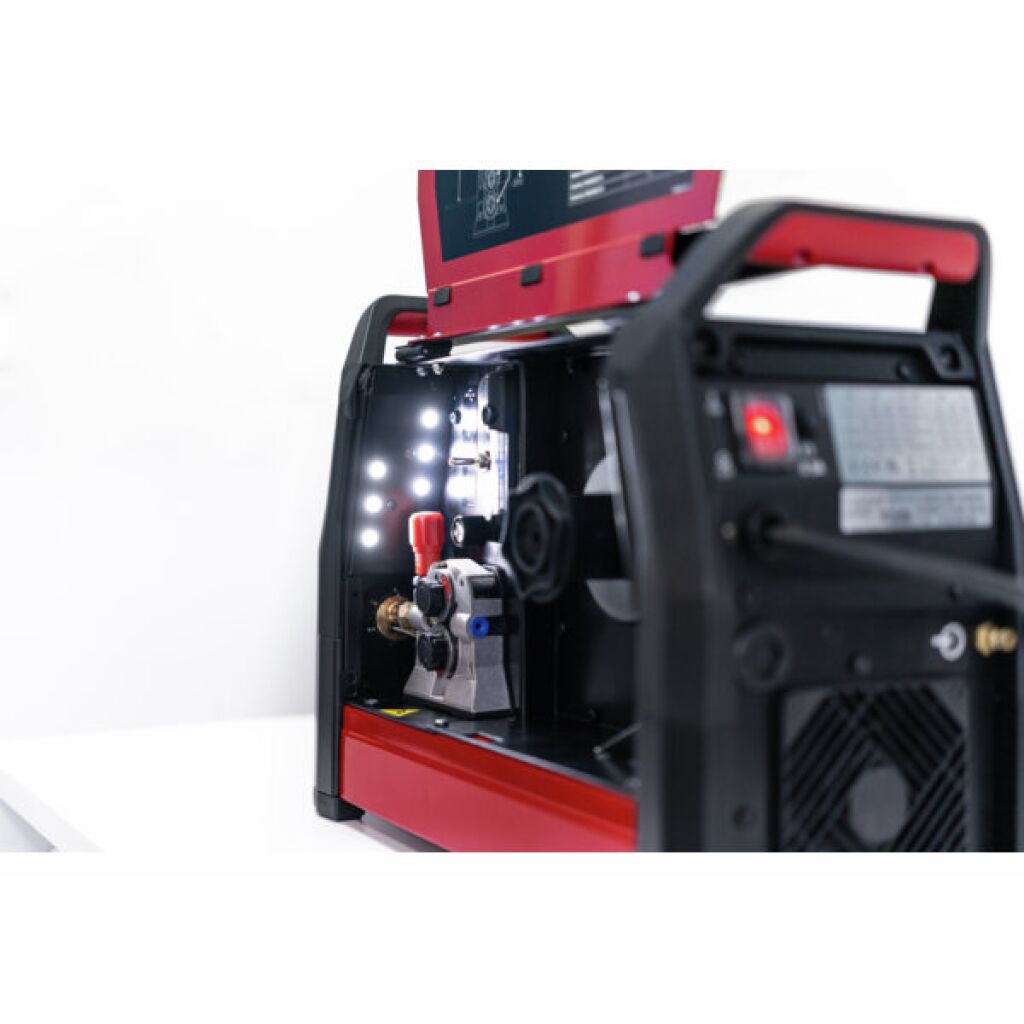

The internal LED lighting illuminates the wire feed mechanism and spool area, making setup and adjustments simple even in poorly lit environments when using a multi process welder that’s truly portable.
Energy Efficient ECO Design
Lincoln Electric’s advanced inverter technology delivers excellent efficiency while reducing operating costs. It’s an energy-conscious approach, perfectly complementing the portable multi process welder’s design.
Benefits include:
- 88% Energy Efficiency
- Idle Power Consumption ≤ 20W
- Automatic Standby Function
- Automatic Shutdown Function
- Reduced Electricity Usage
- Lower Running Costs
The YARDTEC® 300C STANDARD offers an environmentally friendly welding solution without compromising performance. That’s yet another advantage of having a portable multi process welder for your team.

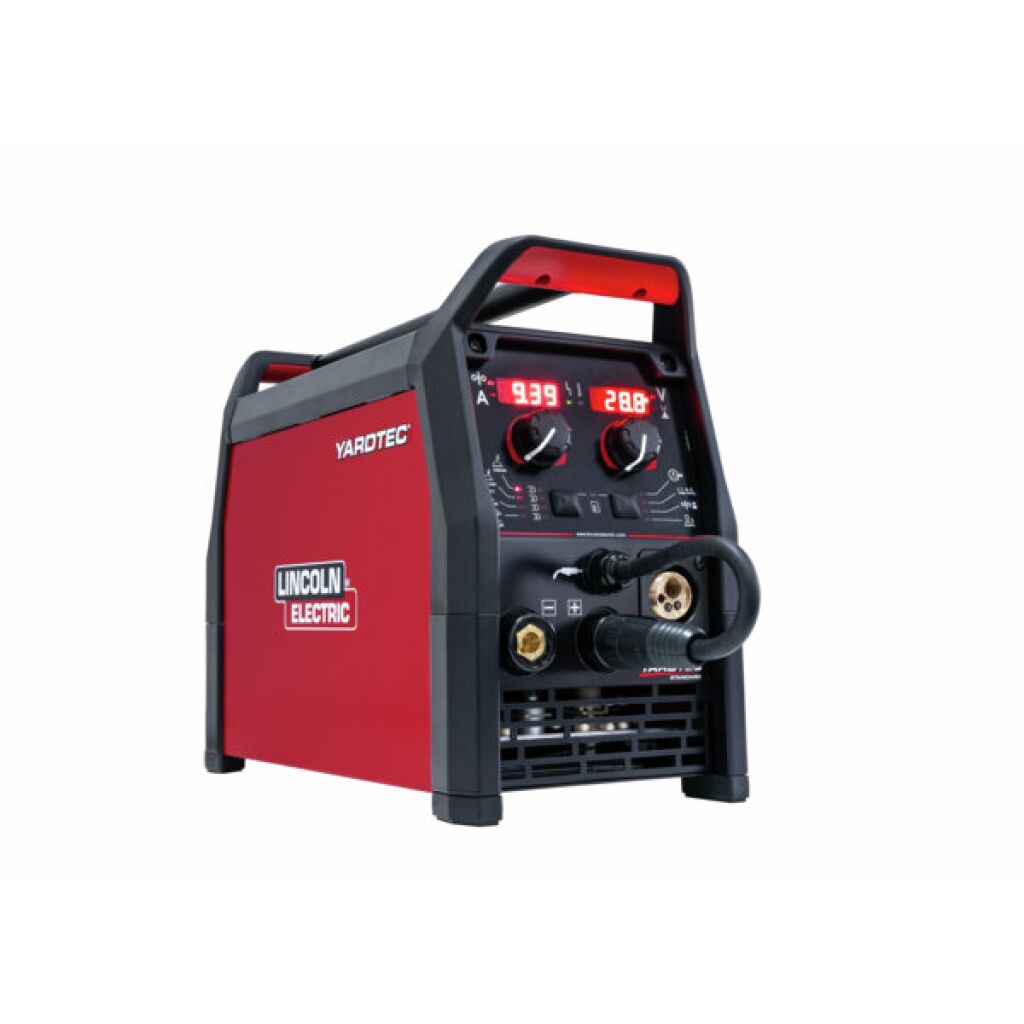

Simple and Easy Operation
The machine features an intuitive LED user interface that allows operators to quickly set parameters and start welding with minimal setup time—true to what you’d expect from a modern welder.
Additional user friendly features include:
- Digital Controls
- Easy Parameter Adjustment
- Tool Free Polarity Changes
- Integrated Gas Management
- Quick Wire Loading System
What’s Included
Every Lincoln Electric YARDTEC® 300C STANDARD comes supplied with everything you need to start working with your portable multi process welder right out of the box.
- 3m Power Cable with IEC 16A/5P 400V IP44 Plug
- Rolls for 1.0mm and 1.2mm Steel Wire
- 3m Welding Cable with Earth Clamp
- Gas Hose Connection Plug
- User Manual on USB Stick
3 Year Full Parts and Labour Warranty
For complete peace of mind, the Lincoln Electric YARDTEC® 300C STANDARD is backed by a comprehensive 3 Year Full Parts and Labour Warranty, ensuring reliable support and long term protection for your investment in a high-quality portable multiprocess welder.
Why Choose the Lincoln Electric YARDTEC® 300C STANDARD?
- Lightweight portable welding machine
- Multi process welding capability
- Generator ready operation
- Dual voltage flexibility
- Professional wire feed system
- Built for shipyards and construction sites
- Industrial grade reliability
- Energy efficient inverter technology
- VRD safety protection
- 3 year full parts and labour warranty
If you are looking for the perfect blend of portability and advanced multi process welding, this portable multi process welder is the ideal solution for professionals.
