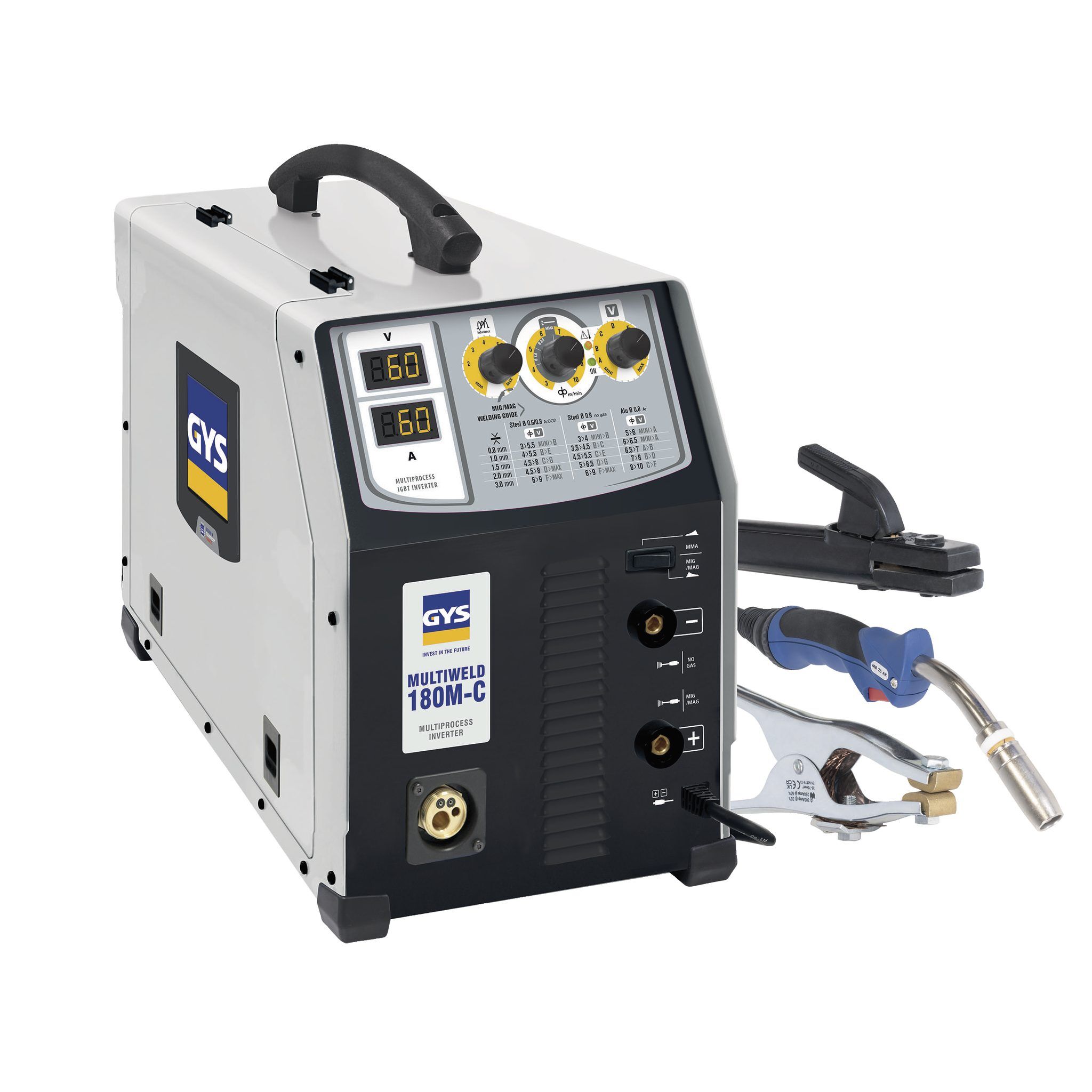

GYS MultiWeld 180C- Mig/Mag/MMA Full Package

£466.00 ex.VAT

GYS MultiWeld 180C- Mig/Mag/MMA Full Package includes:

  • MIG torch
  • Earth Cable and Electrode holder

GYS MultiWeld 180C is a versatile welding machine designed to perform multiple welding processes, including MIG (Metal Inert Gas), MAG (Metal Active Gas), and MMA (Manual Metal Arc) welding.

Compare
Add to wishlist
SKU: 078727 Categories: , ,
Description

The GYS MultiWeld 180C is a versatile welding machine offering MIG/MAG, MMA, and flux-cored welding capabilities. This full-package unit is designed to handle a variety of welding tasks on materials like steel, stainless steel, and aluminum. With adjustable voltage and current settings, it provides precise control for both novice and experienced welders. The MultiWeld 180C features an intuitive interface, robust construction, and easy setup, making it suitable for workshops, maintenance, and on-site jobs. Its multifunctionality and portability ensure it meets a wide range of welding needs efficiently and reliably.

MIG/MAG welding:

  • steel wire: Ø 0.6 and 0.8 mm
  •  stainless steel wire: Ø 0.8 mm
  •  aluminium wire: Ø 0.8 and 1.0 mm
  •  flux-cored wire (reverse polarity): Ø 0.6 and 0.9 mm
  •  MMA welding: basic and rutile electrodes (up to Ø 3.2 mm)
  • Integrated Anti sticking welding aid: reduces the likelihood of the electrode sticking when in contact with the workpiece.

GYS Multiweld 180C Optimised MIG/MAG Settings:

  • Manual adjustment of arc dynamics.
  • Welding aid: a table on the front panel to help the user adjust the voltage and wire feed speed to best suit the thickness of the workpiece material.

The GYS multiweld 180M-C is a compact single-phase power source combining MIG/MAG, flux-cored gasless wire, and MMA welding processes. Its intuitive interface incorporates two digital displays offering simple and precise adjustments. Easily maneuverable on site, it is suitable for welding steel, stainless steel, and aluminum up to 3mm thick (MIG/MAG).

Features of GYS MultiWeld 180C:

  • Multi-Process Capability: The GYS MultiWeld 180C can handle MIG/MAG and MMA welding, making it suitable for a wide range of welding applications.
  • MIG/MAG Welding: It supports both MIG and MAG welding processes, which are commonly used for welding thin to medium-thickness materials. This process uses a continuous wire feed as an electrode and shielding gas to protect the weld pool from contamination.
  • MMA Welding: Also known as stick welding, MMA welding is a versatile process that can be used on a variety of materials and thicknesses. It uses a consumable electrode coated in flux to lay the weld.
  • Portability: The MultiWeld 180C is designed to be portable and user-friendly, making it suitable for both workshop and on-site welding tasks.
  • Adjustable Settings: It features adjustable welding parameters, allowing the user to fine-tune the machine for different welding tasks and materials.
  • Ease of Use: With a straightforward interface and easy setup, the MultiWeld 180C is suitable for both beginners and experienced welders.
  • Durability and Reliability: GYS is known for producing robust welding equipment, and the MultiWeld 180C is built to withstand the demands of various welding environments.

How to Use GYS MultiWeld 180C?

  • To use the GYS MultiWeld 180C, start by selecting the appropriate welding mode: MIG/MAG, MMA, or flux-cored, based on your project needs.
  • Ensure all connections are secure and the unit is properly plugged into a power source.
  • Adjust the voltage and current settings according to the material and thickness you are working with.
  • For MIG/MAG welding, install the correct wire spool and gas supply, and for MMA welding, select the appropriate electrode.
  • Set up your workpiece, ensuring a clean and stable welding surface.
  • Initiate the arc and maintain a consistent travel speed and angle to achieve a smooth, even weld.
  • Always wear appropriate safety gear, including gloves and a welding helmet, to protect yourself from sparks and UV radiation.
  • Regular maintenance and proper storage of the machine will ensure its longevity and optimal performance.
