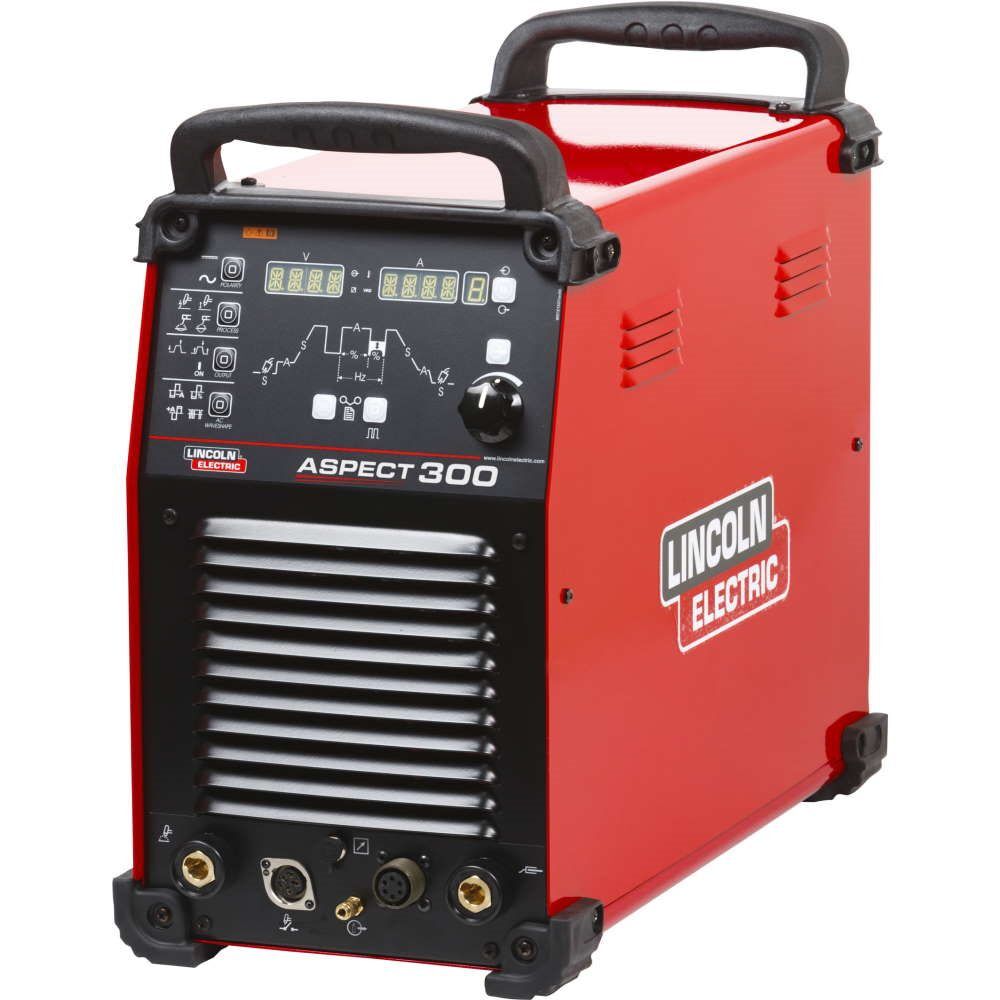

Lincoln Aspect 300 AC/DC TIG/GTAW Welding Machine
Original price was: £5,011.00.£4,483.00Current price is: £4,483.00. ex.VAT
Lincoln Aspect 300 offers advance inverter technology for superior TIG performance. Superb welding characteristics with TIG AC, TIG DC and MMA processes. Adjustable cleaning and penetration for perfect aluminium welding Variable AC frequency (40-400Hz) for control of travel speed and penetration.
Lincoln Aspect 300 is an industrial AC/DC TIG welding machine designed and manufactured using the latest inverter digital technology. This machine has been designed and built to perform in the most hazardous environments at high outputs: 300A at 35% duty cycle in TIG AC and TIG DC applications. The controller provides all the features you would expect from industrial AC/DC TIG inverter welding machines combined with a user-friendly front panel layout, setting advanced TIG parameters has never been so simple!
The top class features like the 2A minimum current, the multiple AC mode selection (including four different wave shapes), the optimized TIG start with adjustable electrode type and HF polarity, make the unit the right choice to suit any application. You can simply change it to water-cooled by adding the COOL ARC® 46 Water Cooler. A robust, stable and well equipped cart is available for easy movement of the unit.
Three Phase AC/DC TIG Welder:
The Aspect 300 is an industrial-grade AC/DC TIG welding machine, designed with cutting-edge inverter digital technology. Built to withstand the toughest environments, it delivers high performance with a 300A output at a 35% duty cycle for both TIG AC and TIG DC applications. The machine’s controller offers a comprehensive range of features typically found in industrial AC/DC TIG inverters, with a user-friendly front panel that simplifies the setting of advanced TIG parameters. Top-tier features include a minimum current of 2A, multiple AC mode selections (with four different wave shapes), and an optimized TIG start with adjustable electrode type and HF polarity. This makes the Aspect 300 a versatile choice for any application. Additionally, it can be easily converted to water-cooled operation by adding the COOL ARC® 46 Water Cooler, and a durable, well-equipped cart is available for convenient mobility.
Features of Lincoln Aspect 300:
- Advanced inverter technology for superior TIG performance.
- Superb welding characteristics with TIG AC, TIG DC and MMA processes.
- Adjustable cleaning and penetration for perfect aluminium welding
- Variable AC frequency (40-400Hz) for control of travel speed and penetration.
- Full function user-friendly control panel layout with graph and a numeric display make it easy to set all welding parameters.
- Rugged construction electrical safety (IP23), potted PC boards and optimum airflow reduce contamination. Which extends the equipment’s life in the harshest environmental conditions.
- PFC (Power Factor Correction) advantages 30% more output current with the same input current. It is suitable for 115-230V (+15%-10%) single phase, low current consumption, energy saving, low current harmonics. Also reduction of the total CO2 produced by the welding process.
Technical Specification of Lincoln Aspect 300:
- Dimensions: 632 mm x 301 mm x 455 mm (H x W x D)
- Weight: 26 Kg
- Input Current: 32/20A
- Input Hertz: 50/60 Hz
- Input Power: 230/400V/3/50-60 Hz
- Input Phase: 3 ph
- Mode Icon: CC
- Polarity: AC/DC
Lincweld is proud to offer welding supplies and accessories at most competitive prices. Improve your welding experience with our wide range of Welding equipment. However, make sure to take necessary precautions while welding!
Frequently Asked Questions:
Is Lincoln Vantage 300 a good welder?
Yes, the Lincoln Vantage 300 is well-regarded for its durability, versatility, and reliable performance in demanding environments.
How much does a Lincoln 300 weigh?
The Lincoln Vantage 300 weighs approximately 26kg.
What is the duty cycle of the Lincoln Aspect 300?
The Lincoln Aspect 300 has a duty cycle of 35% at 300 amps, allowing for high-output performance in demanding welding applications.
Can the Lincoln Aspect 300 be used for both AC and DC TIG welding?
Yes, the Lincoln Aspect 300 is designed for both AC and DC TIG welding, making it suitable for a wide range of materials and applications.
Does the Lincoln Aspect 300 support water cooling?
Yes, the Lincoln Aspect 300 can be easily converted to water-cooled operation by adding the COOL ARC® 46 Water Cooler.
What advanced TIG features does the Lincoln Aspect 300 offer?
The Aspect 300 includes features like a 2A minimum current, multiple AC mode selection with four wave shapes, and an optimized TIG start with adjustable electrode type and HF polarity.
Is the Lincoln Aspect 300 suitable for industrial environments?
Yes, the Aspect 300 is specifically designed to perform in hazardous and demanding industrial environments, offering robust and reliable operation.
