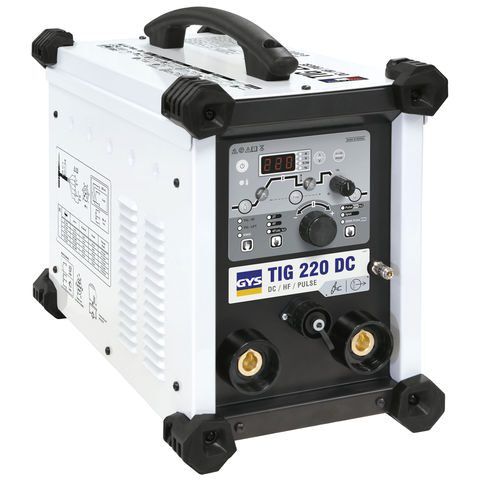

TIG 220 DC HF Industrial Inverter TIG Welder 220Amp (230V)
£1,259.07 ex.VAT
The TIG 220 DC HF has been designed with advanced inverter technology to provide advanced performance in both DC TIG & MMA (arc welding) modes. It is suitable for welding mild steel, stainless, copper & titaniumIn. In TIG mode HF start provides an easy & reliable non-contact way to create an arc removing the possibilty of electrode contamination.
Full product description
TIG 220 DC HF has been designed with advanced inverter technology to provide advanced performance in both DC TIG & MMA (arc welding) modes. It is suitable for welding mild steel, stainless, copper & titaniumIn. In TIG mode HF start provides an easy & reliable non-contact way to create an arc removing the possibilty of electrode contamination.
A lift start option available where use of HF is prohibited. Advanced features include easy to use digital control panel allowing adjustment of all welding parameters e.g. pre- gas, upslope, pulse frequency, downslope & post-gas. Easy Pulse mode enables the user to adjust only the welding current & the machine automatically adjusts the pulse frequency (ideal for welding thinner materials).
The TIG 220 DC HF also offers a fully functioning MMA (arc) machine with advanced features including MMA Pulse, adjustable Hot Start (for easy arc striking), Arc Force (electronic assistance in maintaing a strong arc) as well as Anti-Sticking technology preventing electrodes sticking to the workpiece. This product is compatible for use with a foot pedal (ref 045682 – optional extra). It is delivered complete with professional Binzel TIG torch (8m), TIG consumables box & earth lead.
Features of TIG 220 DC
- 220Amp DC TIG welder
- 1 phase/240volts
- 5 – 220Amp welding range
- Flexible Voltage: Accepts any voltage between 85-265V
- Both HF & Lift start modes
- Adjustable pulse frequency (0.2 – 20Hz)
- Easy Pulse automatically selects ideal pulse frequency
- 2T, 4T & 4T LOG trigger modes (controls hot/cold currentswitching from torch)
- Welds cellulosic, standard rutile, basic (low hydrogen), stainless & cast iron electrodes
- MMA pulse mode
- Store up to 5 pre-set welding parameters
- Foot pedal compatible
- Delivered complete with Binzel TIG torch (8m)
- Weighs only 14kg
- Generator friendly (7kW)
