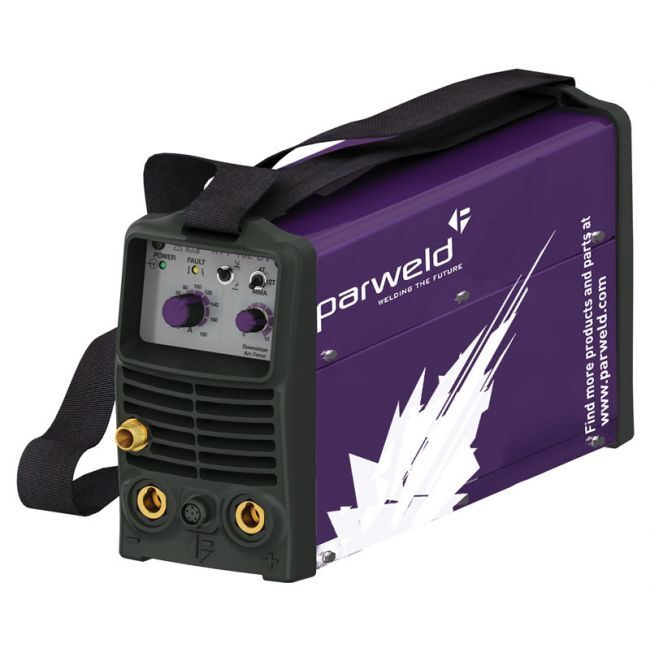

Parweld XTT182DV-P1 XTT 182DV 180A Dual Voltage TIG Inverter

Parweld XTM 221DI 5-in-1 Multi-Process MIG Inverter with AC/DC TIG, MMA and Plasma Cutting

XTM 211DI Parweld Multiprocess – MIG Torch, Argon Regulator and MMA Lead Set Package

The Parweld XTM 221DI is a 5 in 1 multi process inverter for MIG, AC/DC TIG, stick Welding and even plasma cutting!  With a click of the appropriate torch switch, this clever machine quickly changes to the process required.  That’s no changing of torches, polarities or gases to change process, just pull the trigger of the MIG torch for MIG welding, then pull the trigger on the plasma torch to start cutting.   Need to TIG weld Ali, no problem… Just press the TIG torch button or foot control to TIG weld with HF start.  You can have both Argon and Argon Mix and compressed air plugged into the machine and the inverter will switch between the gases automatically based on which process it detects is being used. Great for workshop use where space may be limited. A multi language, digital display is easy to set up, with minimal knowledge required.  Enter the material, type and thickness for the process being used and the machine will set itself to optimal settings which can be tweaked as required.  Rather set up manually?  This can also be done. MIG Torch supplied comes with an amperage control on the handle.  A remote control socket on the front of the machine also allows for use of a foot control for amperage control for TIG welding.

Features:

• Auto polarity switching inside. Changing the work lead connections on the front of the machine is a thing of the past.
• Instant swapping between MIG , TIG, MMA and Stick Welding processes available with one touch of a torch trigger, thus perfect for a versatile workshop, able to switch between any job or any part of a job with the press of a button.
• Modern, multi-language digital user interface/display, alongside simple and intuitive selection options, allows for easy navigation through the synergic programs on board. Appropriate for workshop and sitework.
• Save and recall job function settings for any desired process.
• MIG Weld, down to 0.9mm thick material
• Pulse TIG function for superior arc control
• Dual voltage 110 / 230V
• Welding Capacity 6mm (230V input)

  Superior arc control thanks to Pulse TIG function, for optimal heat control to ensure you don’t burn through your workpiece whilst welding it. Comes with HF (High Frequency) Start TIG ignition. Synergic programming makes working out your weld settings easier than ever – by simply inputting the material and thickness of your desired workpiece, the inbuilt programming automatically calculates the optimum settings for you. Alternatively, for fine-tuning and to suit the more experienced welder, a manual setting selection mode is also available. Connect to your smartphone via Bluetooth for modern control and parameter settings. Machine comes with MMA lead set, 3m MIG Torch with Amperage Control, 12.5ft TIG Torch with Amperage Control, Argon Regulator, input cable and three gas hoses as standard.

SPECIFICATION

Input Voltage (Smart Switching)	AC 110V – 50/60 Hz	AC 230V – 50/60 Hz
Min Fuse Rating	32A	16A
Input Power (kVA)	3.7	3.7
Max Current (A)	MIG 140  TIG  140 MMA 110	MIG  200  TIG  200 MMA 200
Duty Cycle @ 40’C		MIG 200A @ 30%
Generator size	7 kVA
Feed Roll	4 Roll
Wire Spool Size	300mm 15KG 200mm 5KG
Wire Size	0.6 – 1.0mm
Plasma (A)	25A (110V), 40A (230V)
Machine Type	Inverter
Protection Class	IP23S
Dimensions	TBC
Weight (Kg)	TBC
