PARWELD XTT 353P AC/DC PULSED TIG WELDER

The Parweld XTT 353P AC/DC is a 3 phase TIG welding inverter with full TIG welding parameter adjustment. Square wave AC output and power pulsing maximises productivity whilst allowing the user to fine tune heat output.   The XTT 353 P AC/DC is an industrial machine and is generator friendly, coping with ±15% voltage fluctuations. In TIG mode the Parweld XTT 353P can weld materials up to 9mm in thickness. The XTT can also be used in MMA mode.   The XTT 353 air cooled package supplied with a Parweld PRO Grip 26 torch with ergonomic handle for increased welder comfort.  A knuckle joint improves cable flexibility and increased dexterity. Water cooled package supplied with a Parweld PRO Grip 18 water cooled torch also with ergonomic handle.

TIG WELDING

A high frequency start circuit makes for easy and uncontaminated arc starting, increasing Tungsten electrode life. Trigger latching allows the user to release the trigger during long welds to improve comfort.   Simple adjustability. Buttons to select between MMA and TIG modes, AC or DC as well as selecting 2T, 4T, HF start or lift TIG. 2 Arrow buttons allow the user to scroll through pre flow, start current, up slope, main current, background current, pulse frequency, pulse balance, down slope, final current and post flow.  Once the LED indicates the parameter to set, simply turn the middle dial to change settings.  (See product video tab above for demonstration – video shows the single phase XTT 202P but controls remain the same)

---

KEY FEATURES

• 400V input
• 350A @ 50% duty cycle
• Square wave AC TIG mode
• Variable pulse frequency
• Variable AC frequency
• HF Arc starting
• Digital control
• Optional foot control
• Ergonomic and flexible 3 button TIG torch – on/off button and up/down amperage controls.
• Generator friendly
• Hot start function in MMA mode.  The machine increases initial voltage to start the arc and then reduces once arc initiated.
• Adjustable pre and post flow gas, start and end currents as well as pulse frequency and balance
• Industrial 3550 panel socket connectors
• 3 year full warranty (return to base)
• Optional additional 3 year warranty service plan
• Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant

  SUPPLIED WITH:  Power source with 3m Parweld PRO grip max 26 with 3 button control (see gallery image above), 2m gas hose, 2m input cable, 3m earth lead, operating instructions CHOOSE FROM:   Machine only Torch and regulator package Torch, regulator and trolley package Water cooled package including torch, regulator and trolley

SPECIFICATION

Input Supply 50/60Hz	Fuse amps	Amperage range	Slope Functions	Pre/Post flow functions	Pulse rating	AC frequency	Duty Cycle	Dimensions / Weight	Generator requirements (+/-15%)
400V	16A	5 – 350A DC  10 – 350 AC	0 – 10s	0 – 10s	0.5 – 200Hz	50 – 250Hz	350A   @ 50%	606 x 315 x 540 mm / 38kg	13kVA

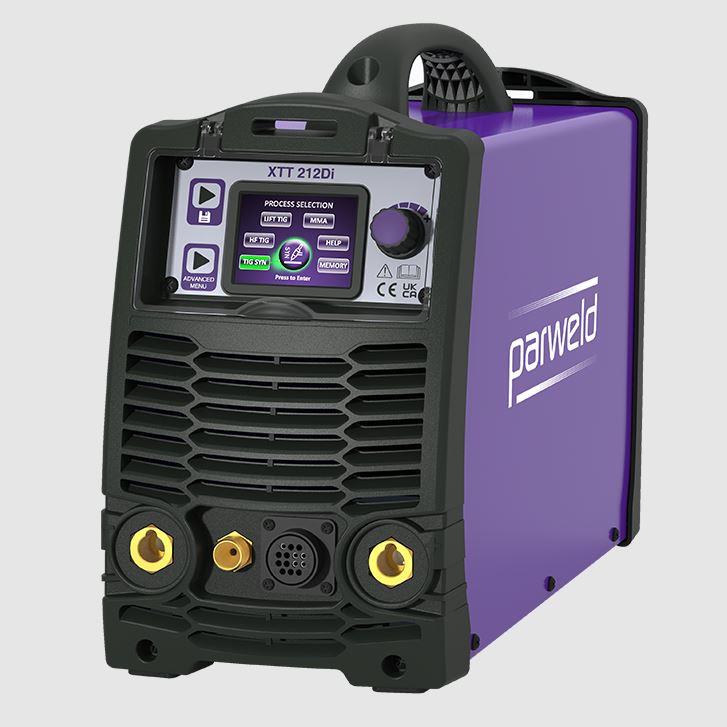

Parweld XTT 212Di AC/DC Pulsed TIG Inverter 110/230V

The Parweld XTT212Di is a dual voltage Pulsed Digital TIG inverter that can be used in both AC and DC modes for TIG or MMA welding.  As a result, this machine can weld of virtually any metal. One of our best selling AC/DC TIG machines, the Parweld XTT 212 offers plenty of features whilst being offered at a great price point.  Build quality is good and the addition of an amperage control on the TIG torch is a nice touch to get you started without having a foot control straight away. The XTT212 is a single phase machine, perfect for home or light industrial use and perfect for on site work where only 110V can be used. Supplied in the XTT 212Di P1 package is a TIG torch and regulator making you almost ready to go, with the addition of PPE, gas and some consumables. Square wave AC output and power pulsing maximises productivity whilst reducing heat output. This means you can weld fast without fear of burning through your work piece. The majority of steels can be welded in DC mode quickly using the pulse power function. The AC mode allows the welding of aluminium and magnesium alloys. The square wave output and adjustable frequency maximises the arc energy offering high welding speeds when coupled with the power pulsing function. The beauty of this machine is in its versatility, offering the benefits of a 230V workshop machine with the flexibility of 110V site machine. Compared with its cousin, the XTT202 AC/DC, the Parweld XTT212Di TIG Inverter is 40% smaller, but packs the same punch. Simple intuitive one knob control allows for rapid program setting. The XTT212 TIG inverter works with digital and analogue on torch current controls and has a foot control option.  Water cooled option also available. The P1 Package comes with a 3 Button Amperage Control as standard on the PRO26 TIG torch, eliminating the need for a foot control pedal, and putting the control at your fingertips.

---

INTERFACE

Featuring a highly intuitive multi language digital interface with one control knob offering Synergic TIG welding functionality.  As a result the setup process only requires material type and thickness details (while in synergic mode).  The system will then use the information supplied to set the welding parameters accordingly.  Synergic mode can also be switched which provides the option for manual input of welding parameters for the more experienced welder. Synergic TIG functionality is quite a unique and is often only found on MIG welding machines.  However it is a highly beneficial function to have on a TIG welding inverter as it makes setting your machine for the job in hand so much easier.

---

Key Features

• 110/230V input
• Synergic TIG Functionality
• Digital Interface
• 200A @ 25% duty cycle
• Square wave AC TIG mode
• Variable AC frequency from 50 to 250Hz perfect for refining bead and cleaning width
• Variable pulse frequency – control the heat input on thinner materials to reduce warpage and burn through
• HF arc starting for uncontaminated arc starts.
• Digital control
• Optional foot control • Generator friendly
• Adjustable upslope (TIG mode) 0 – 10s
• Adjustable downslope (TIG mode) 0 – 10s
• Supplied with 3m earth lead
• Connections 35-50mm panel socket connections
• Water Cooled Option Available
• 3 Years return to base warranty + 3 years servicing plan
• Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS Compliant



P1 Package Comes with:

• 3m Input Cable, 3m Earth Lead, Gas Hose

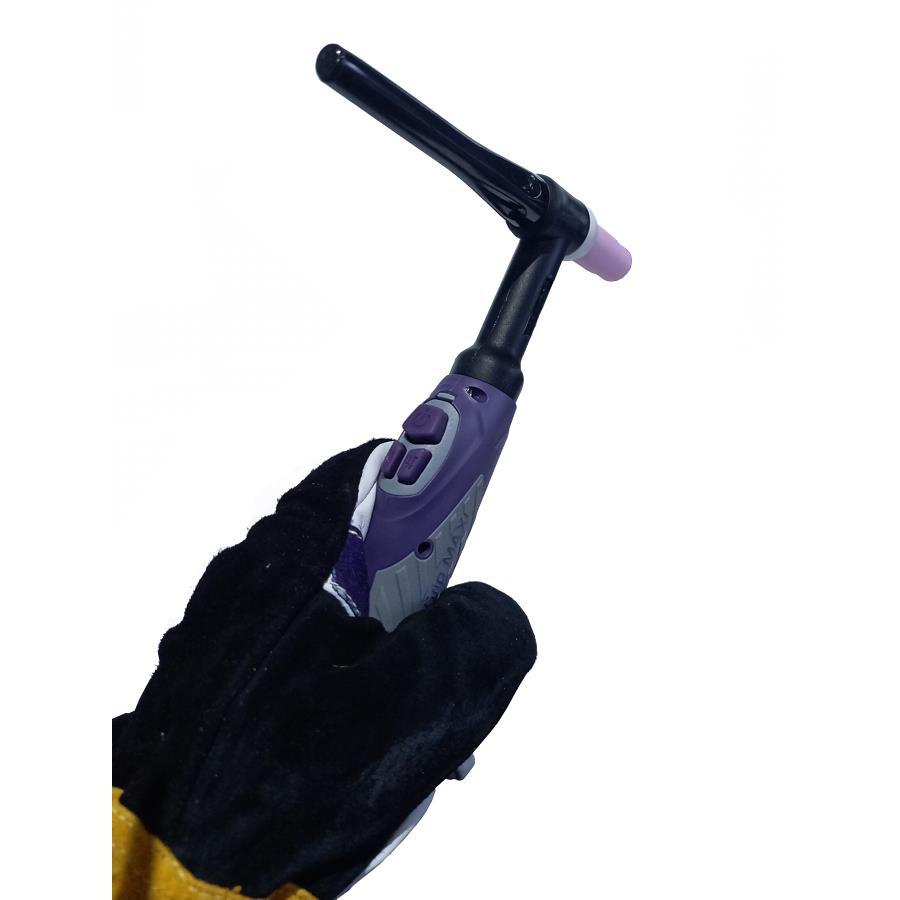

• P1: PRO26 TIG Torch (3 button with up & down amperage control) & Regulator

Machine only package comes with:

• Switch plug connector for fitting your own torch
• Gas hose



• Ac Frequency – 50-250Hz
• MMA Function – Yes
• Package – XTT212P
• Recommended Generator size – *9 KVA
• Type – TIG AC-DC
