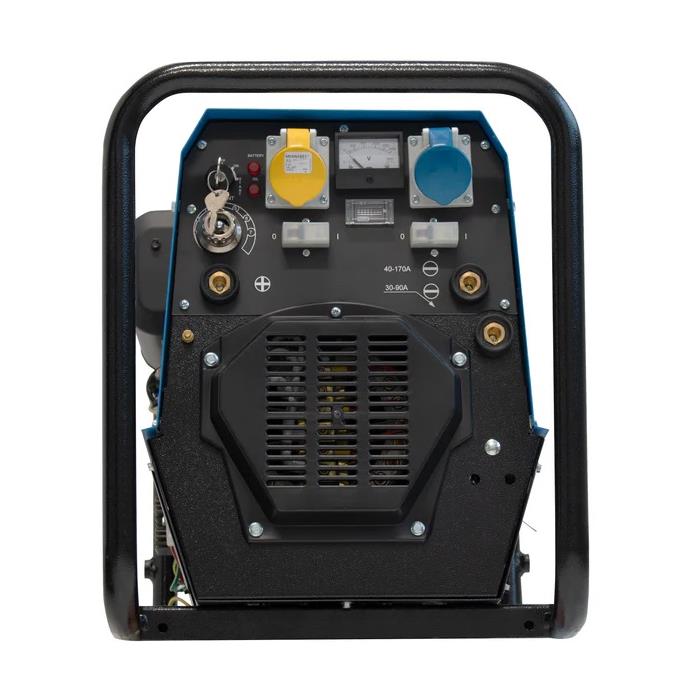

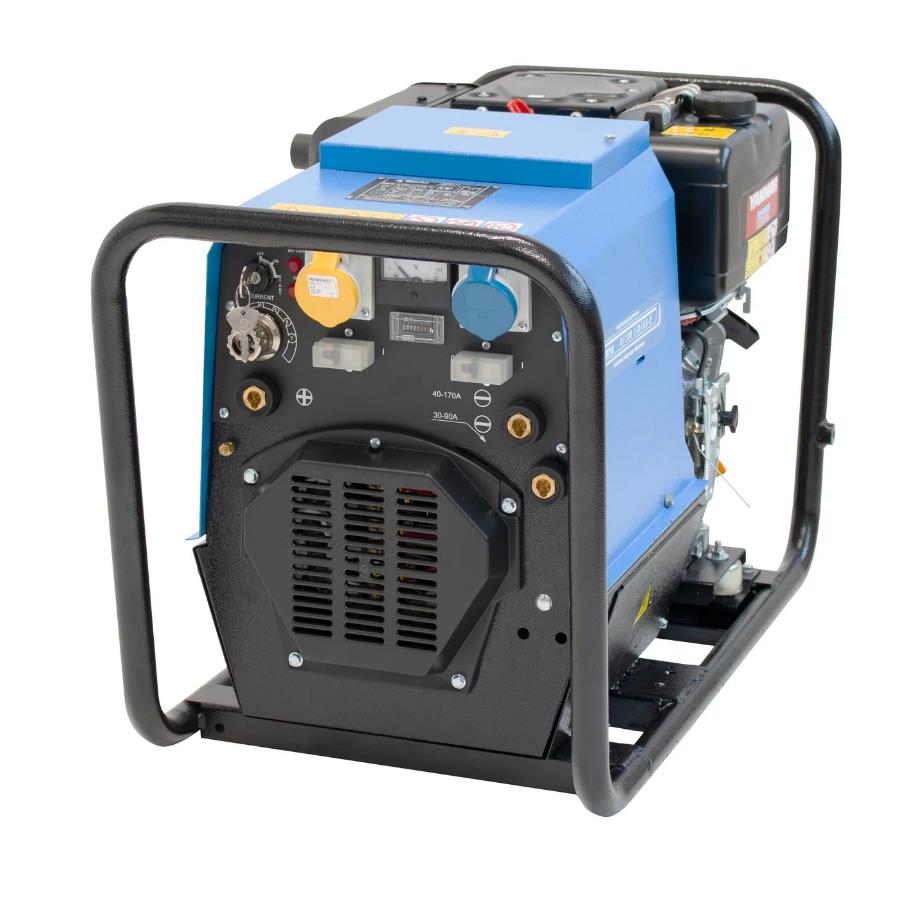

Genset MPM 5/180 I-D/AE-Y Diesel Welder Generator
The Genset MPM 5/180 is an Italian made diesel engine driven welder generator. A stepless welding current adjustment from 40A to 170A allows the user to run up to 4mm welding rods. The generator side of this Genset offers both a 110V socket and a 230V socket, perfect for on site work, running angle grinders, lighting etc.

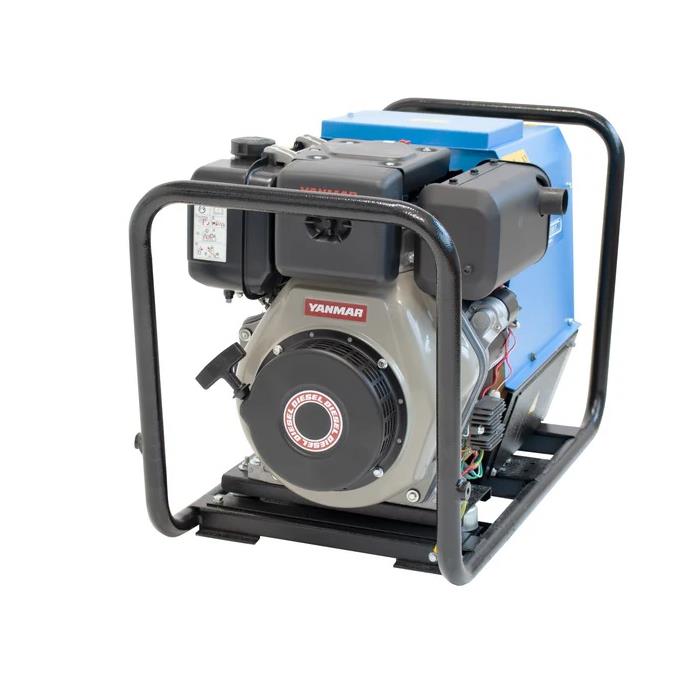

This portable, compact, lightweight and easily transportable engine driven welder, is equipped with a Yanmar L100V 3000 RPM engine and is fitted for remote control operation.
A quality alternator provides a better welding current quality, with a clean and distortion free wave form.
Just like all the GenSet engine driven welders it is designed to be used as both a generator and welder simultaneously, its simple and smart design allows easy handling too.
Powered by a stage 5 compliant Yanmar L100V engine, you can be rest assured that the machine is built to last and will stand up to Industrial use.
Further features of the Genset MPM 5/180 is an electric start for easy starting, auto idle and a voltmeter.
FEATURES
- Warning lights for battery charger failure and low oil pressure
- 12V battery
- Stepless current adjustment
- Earth leakage circuit breaker
- Power output protection
- 1 x 16A / 230V single phase EEC socket (4kVA)
- 1 x 16A / 110V single phase EEC socket (2kVA)
- Voltmeter
DC WELDING
| Amps range | 40 – 170A |
| Duty cycle @ 35% | 170A – 27V |
| Duty cycle @ 60% | 140A – 26V |
| Open Circuit Voltage (OCV) | 90V |
| Max Welding Rod | 4mm |
PETROL ENGINE
| Type | Yanmar L100V – 1 Cylinder – 435cm³ |
| Starting System | Electric (12VDC) |
| Cooling System | Air |
| Fuel Tank Capacity | 5.5 Litres |
| Fuel Consumption @ 75% | 1.45 Litres/Hour |
DIMENSIONS
Measurement: 920mm x 460mm x 570mm (L x W x H)
Dry Weight: 148KG
