Easycut 25 Plasma Cutter (With Built In Compresser) 240v
£760.00 ex.VAT
| Input Voltage | AC 230V – 50/60 Hz |
| Input Power (kVA) | |
| Input Current (Amps) | 16 |
| Duty Cycle @ 35% (A) | 25 |
| Cutting Capacity (Clean) | 6mm |
| Cutting Capacity (Severance) | 8mm |
| Protection/Insulation Class | IP21S |
| Dimensions (mm) | 41 x 36 x 20 |
| Weight (Kg) | 15 |
| Internal Air Compressor Noise | 60/70Db |

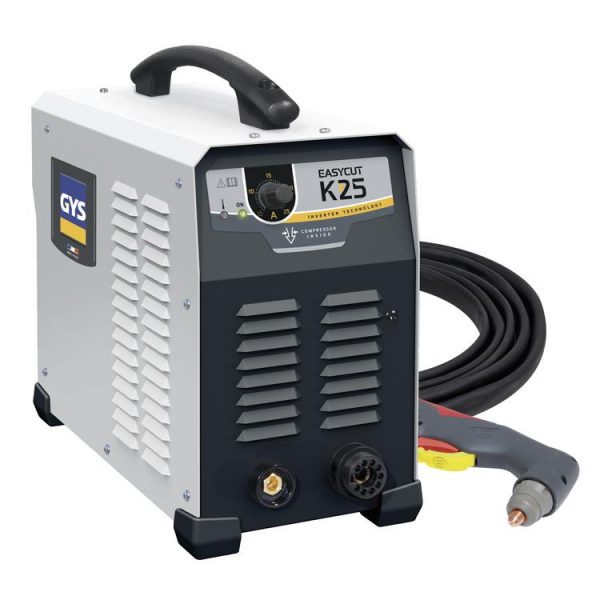

GYS EASYCUT K25F WITH BUILT IN AIR COMPRESSOR
Perfect for maintenance work, the GYS EasyCut K25F has a built in air compressor for plug and play functionality. More compact and cheaper long term than oxy fuel cutting, a plasma cutter with built in air compressor is less bulky too.
A pilot arc start does not require contact of the tip with the work piece. Pilot arc eliminates the requirement for a HF (high frequency) start eliminating any electro magnetic interference from mobile phones, computers, radios etc.
The GYS plasma K25F provides high quality cutting results even on painted surfaces.
Cutting capacities:
- Up to 8mm steel, stainless steel and cast iron (6mm clean cut)
- Up to 6mm aluminium and copper (4mm clean cut)
- Very accurate, the CUTTER K25F enables you to cut 0.6mm metal sheets at low intensity.
The all in one design of the plasma cutter and air compressor makes this machine ideal for mobile tasks, simply plug and play. Weighing only 15 kg, its also light weight to transport.
Other features:
GYS P400 protection – makes machine suitable for use with a generator (+/-15%) (AVR recommended
