GYS Multiweld 400amp 3Phase Package with 5m interconnection cable
£1,999.00 ex.VAT

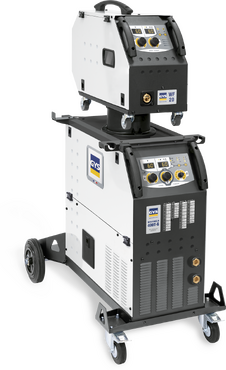

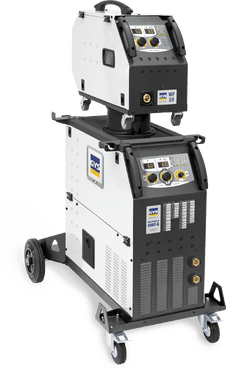

MULTIWELD 400T G Multiprocess Welder
The MULTIWELD 400T G is a powerful three phase welding system designed for versatility, precision, and high performance across a wide range of applications.
Built for professional use, this multiprocess power source supports MIG MAG welding, flux cored wire, MMA, and TIG Lift, making it ideal for workshops, fabrication, and industrial environments.
Advanced Control and Ease of Use

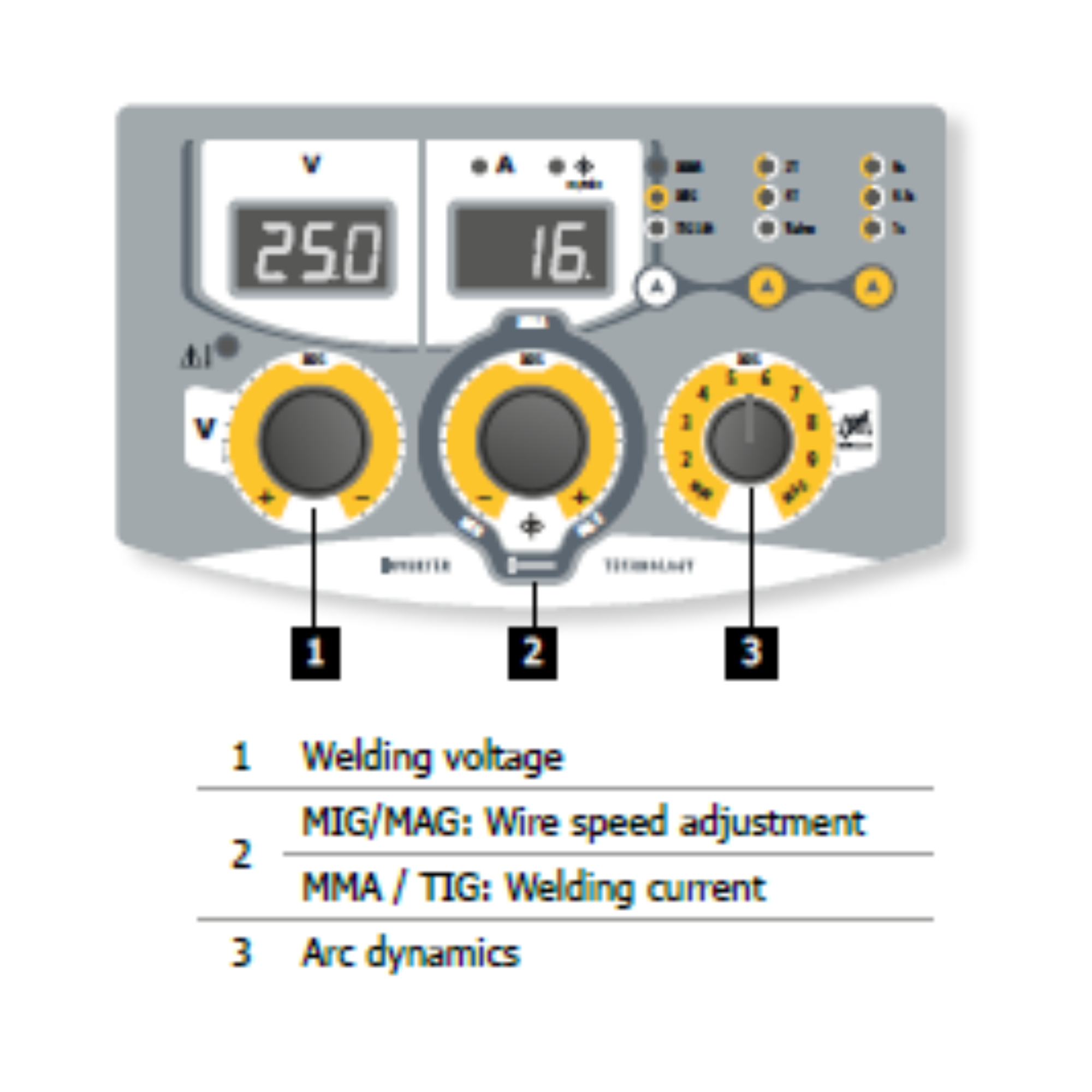

The MULTIWELD 400T G features a clear and intuitive control panel with dual digital displays, allowing operators to set and adjust welding parameters quickly and accurately. This ensures consistent results while reducing setup time.
Precision Wire Feeding with WF 20
When paired with the WF 20 wire feeder, the machine delivers exceptional control over wire feed speed and arc stability. This combination provides outstanding weld quality across a range of materials, including aluminium, where precision is critical.
Key Benefits
-
Multiprocess functionality for maximum flexibility
-
Reliable three phase power for demanding workloads
-
User friendly interface with dual digital displays
-
Smooth and consistent arc performance
-
Excellent results on steel, stainless steel, and aluminium
-
Compatible with a wide range of consumables
Built for Professional Performance
Whether you are working in fabrication, engineering, or heavy duty repair, the MULTIWELD 400T G offers the reliability and control needed to achieve high quality welds every time.
this machine will be Built and weld tested before shipping by lincweld, We Do not just ship this as boxes.
Outstanding Value for Money If you’re looking for maximum performance, considering Multiprocess can provide impressive results. If you need a 400amp mig welding machine cheap, there are options available that deliver both power and affordability.warranty. If you’re searching for a 400amp mig welding machine cheap, this introduction will help you understand what to look for.
Multi-Process Machine If you’re searching for a 400amp mig welding machine cheap, this model offers both versatility and value.
MULTIWELD 400T G Specifications (Simplified)
Manufactured by GYS, the MULTIWELD 400T G is a powerful and versatile three phase welding machine designed for professional use.
Power and Input
-
Supply: 400V three phase
-
Frequency: 50 / 60 Hz
-
Max input current: 32A
Welding Output Range
-
MIG MAG: 20 to 400A
-
MMA: 40 to 400A
-
TIG Lift: 10 to 400A
Duty Cycle (EN 60974-1)
-
MIG MAG:
-
320A at 60%
-
280A at 100%
-
-
MMA:
-
300A at 60%
-
280A at 100%
-
-
TIG:
-
340A at 60%
-
300A at 100%
-
Wire and Consumables
-
Solid wire: 0.6 to 1.6 mm
-
Flux cored wire: 0.9 to 1.6 mm
-
Compatible rollers: 0.6 to 1.6 mm
-
Wire feed speed: 1.5 to 21 m per minute
Wire Feeder (WF 20 Option)
-
Separate unit for better control
-
Electronic control system
-
Motor power: 50W
Torch and Cable Options
-
MIG interconnection cables: 5m, 10m, 15m, 20m
-
Torch options:
-
Steel: 4m
-
Aluminium: 3m
-
Machine Details
-
Open circuit voltage: 78V
-
Dimensions: 90 x 55 x 67 cm
-
Weight: 55 kg
-
Protection rating: IP21
Compliance
-
CE certified
-
EN 60974-1 compliant
3 years warranty
