Parweld XTE 201C MIG Welder £438.50 ex.VAT

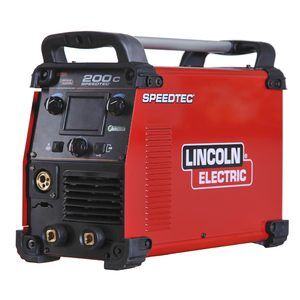

Lincoln Speedtec 200C Multi Process Welder
£1,190.28 ex.VAT
Technical Specification Lincoln Speedtec 200C Multi Process Welder
- Input power: 115-230/1/50/60
- Rated output: 200A/24V@25%
- Input current: 16A
- Output range: 20-200A
- Solid wire size range: 0.6-1.0mm
- Cored wire size range: 0.9-1.1mm
- Wire feed speed range: 1-15 m/min
- Machine dimensions: 396mm x 246mm x 527mm
- Machine weight: 17.2Kg
Description
The SPEEDTEC 200C represent the latest generation of state of the art inverter based single phase compact MIG machines. Lincoln Electric has constructed a fully professional machine packed with features, into a small light-weight compact housing maximising portability. These features make our range extremely versatile; they can be used for many different applications and can be easily moved around production facilities or transported to any location effortlessly. These units can be powered from the mains supply or are also suitable for use with motor generators.
The SPEEDTEC® 180C & 200C units have been equipped with Power Factor Correction (PFC), a feature which supports high output welding current from a single phase 230V1Ph 50/60Hz supply allowing it to be used with a long (up to max 100m) primary extension cable. With electronically designed welding waveforms Lincoln Electric offers these multi-process units for MIG, Stick or TIG modes.
Features of Lincoln Speedtec 200C:
- Multi-Talented Performer: This welder tackles a variety of tasks, including CV MIG, FCAW, Stick, and TIG Lift welding, making it a versatile tool for any project.
- Built to Go: Compact, robust, and lightweight, this welder is easy to take anywhere. Whether you’re working on-site or in your workshop, it offers superior portability.
- Powerful and Efficient: Power Factor Correction (PFC) delivers more welding power while reducing energy costs. Plus, it’s generator compatible, giving you flexibility in your workspace.
- User-Friendly Controls: Choose between the simple icon control panel (Speedtec 180C) or the intuitive color TFT interface screen (Speedtec 200C) for a user-friendly welding experience.
- Precision Performance: Experience superior arc performance with features like infinite voltage, wire feed speed, and inductance control for CV MIG welding, hot start and arc force control for Stick welding, and Lift TIG to prevent tungsten contamination
