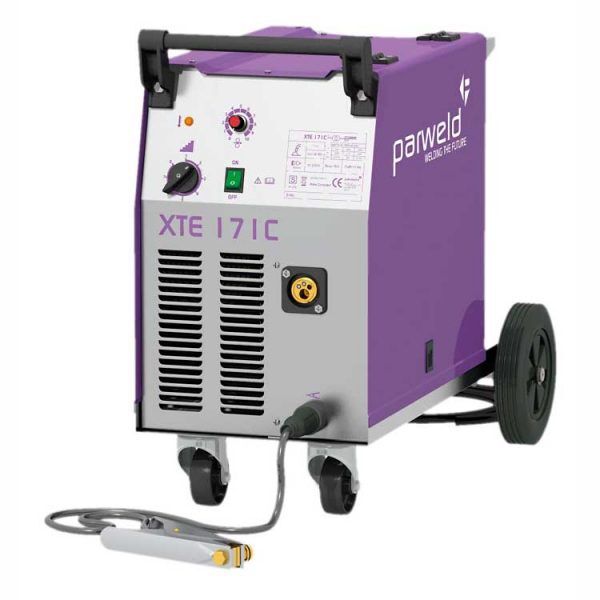

Parweld XTE 171C MIG Welder
£427.00 ex.VAT
PARWELD XTE 171C MIG WELDER
Ideal for light automotive and hobbyist use, the Parweld XTE range are a transformer machine with fan cooling.
The XTE 171C is suitable for welding of Steel, Stainless Steel and Aluminium when using the appropriate MIG welding wire. An incorporated wire feed of metal construction with a quality motor with 2 roll drive provides reliable wire feeding. Suitable for either 0.6 or 0.8mm MIG wire in 5 or 15kg spools. 8 step voltage selection and infinitely variable wire feed speed allows fine tuning of welding parameters.
Industry standard euro torch connection allows the use of all good quality MIG torches. Supplied with the Parweld Eco-grip Max 150A MIG torch, taking industry standard Binzel style spares available from any welding supplier.
Perfect for in the workshop, the Parweld XTE machines are supplied on wheels and casters for maneuverability. A solid rear wheel axle further demonstrates the machines rugged build quality. A carriage at the rear of the machine securely holds half size (20L) gas cylinders.
KEY FEATURES
- Weld Steel, Stainless Steel or Aluminium
- 230V single phase
- 165A @ 15% duty cycle
- 2 roll drive wire feeder
- Use gas with solid MIG wire or reverse polarity and use gas less, self shielding MIG wire
- Forced fan air cooling
- 8 voltage step adjustment
- Infinitely variable wire feed speed
- Overload warning indicator
- Built in gas valve
- Use 5kg or 15kg MIG wire spools
- Supplied with Parweld MIG torch – Integrated Knuckle Joint Systems allowing movements of the handle and neck independently from the cable assembly
- 2 year return to base warranty
- Manufactured to IP21S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant
SUPPLIED WITH: Power source with euro connecting 3m Parweld Eco grip max 150A MIG torch, 1.65m hard wired work return lead, operating instructions
SPECIFICATION
| Input Supply 50/60Hz | Fuse amps | Amperage range | Voltage steps | Wire size | Duty Cycle | Dimensions / Weight | Generator requirements (+/-15%) |
| 230V | 16A | 30 – 165A | 8 | 0.6 – 0.8mm | 165A @15% | 705 x 420 x 630 mm / 38.3kg | 8kVA |
Related products
Lincoln Bester 190C Multi MIG TIG MMA Welding Machine
Parweld XTM 161i MIG Welder
PARWELD XTM 161i MIG WELDING INVERTER
Parweld’s smallest inverter MIG welder, the Parweld XTM 161i is suitable for use with both gas using solid wire or with gasless flux cored MIG wire. Welds materials up to 4mm with ease using either 0.6 or 0.8mm MIG wire. Synergic control of both volts and wire feed speed allows the user to infinitely adjust parameters to achieve optimum settings for the perfect weld. Digital displays show volts and wire feed speed, changing to amperage during the weld. A quality 2 roll wire feed ensures hassle free and smooth wire feed. A guide roller is included with the machine with grooves for both 0.6 and 0.8mm wires, easily changeable by removing and turning the roller. An industry standard euro torch connection allows the use of all good quality MIG torches. Supplied with the Parweld Eco-grip Max 150A MIG torch, taking industry standard Binzel style spares available from any welding supplier. Perfect for in the workshop or for mobile use, the Parweld XTM range of machines are lightweight and housed in rugged cases for durability.KEY FEATURES
- Weld Steel, Stainless Steel or Aluminium (up to 4mm thickness)
- 230V single phase
- 160A @ 40% duty cycle
- 2 roll drive wire feeder
- Use gas with solid MIG wire or reverse polarity and use gas less, self shielding MIG wire
- Infinitely adjustable voltage (13.5 – 22V)
- Infinitely variable wire feed speed (2 – 15mm/min)
- Adjustable burnback control
- Variable inductance
- Overload warning indicator
- Built in gas valve
- Use 5kg MIG wire spools
- Supplied with Parweld MIG torch – Integrated Knuckle Joint Systems allowing movements of the handle and neck independently from the cable assembly
- 3 year no quibble return to base warranty
- Manufactured to IP21S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant
SPECIFICATION
| Input Supply 50/60Hz | Fuse amps | Max current | Wire size | Duty Cycle | Dimensions / Weight | Generator requirements (+/-15%) |
| 230V | 16A | 160A | 0.6 – 0.8mm | 160A @ 40% | 469 x 223 x 421 mm / 15.5kg | 5 kVA |
Parweld XTM 221Di MIG Inverter 5-in-1 | MIG, TIG and Plasma | P3T
Parweld XTM 221DI 5-in-1 Multi-Process MIG Inverter with AC/DC TIG, MMA and Plasma Cutting
XTM 211DI Parweld Multiprocess – TIG Torch, MIG Torch, MMA Lead Set and Plasma Torch Package on Trolley
Features:
- Auto polarity switching inside. Changing the work lead connections on the front of the machine is a thing of the past.
- Instant swapping between MIG , TIG, MMA and Stick Welding processes available with one touch of a torch trigger, thus perfect for a versatile workshop, able to switch between any job or any part of a job with the press of a button.
- Modern, multi-language digital user interface/display, alongside simple and intuitive selection options, allows for easy navigation through the synergic programs on board. Appropriate for workshop and sitework.
- Save and recall job function settings for any desired process.
- MIG Weld, down to 0.9mm thick material
- Pulse TIG function for superior arc control
- Dual voltage 110 / 230V
- Welding Capacity 6mm (230V input)
SPECIFICATION
| Input Voltage (Smart Switching) | AC 110V – 50/60 Hz | AC 230V – 50/60 Hz |
| Min Fuse Rating | 32A | 16A |
| Input Power (kVA) | 3.7 | 3.7 |
| Max Current (A) | MIG 140 TIG 140 MMA 110 | MIG 200 TIG 200 MMA 200 |
| Duty Cycle @ 40’C | MIG 200A @ 30% | |
| Generator size | 7 kVA | |
| Feed Roll | 4 Roll | |
| Wire Spool Size | 300mm 15KG 200mm 5KG | |
| Wire Size | 0.6 – 1.0mm | |
| Plasma (A) | 25A (110V), 40A (230V) | |
| Machine Type | Inverter | |
| Protection Class | IP23S | |
Galaxy 400T Duo without accessories Pulse MIG
MULTI-PROCESS
MIG/MAG Pulse: This adaptable unit can be equipped with the optional WF 36 wire feeder, allowing quick switching between two wire types or diameters.
-
Steel and stainless steel wire: Ø 0.6 to 1.2 mm
-
Aluminium wire: Ø 0.8 to 1.2 mm
-
Flux-cored wire (inverted polarity): Ø 0.9 to 1.6 mm
MMA DC / Pulse: compatible with basic and rutile electrodes.
TIG DC Lift / Pulse.
PREMIUM MIG/MAG WELDING
4 selectable welding modes:
-
Standard: ideal for quick and easy welding tasks.
-
Pulse: minimises spatter and touch-ups across all welding positions.
-
ModulArc: excellent for welding aluminium alloys with a high-quality finish.
-
Manual: tailored for skilled welders and DMOS-specific work.
Advanced arc control ensures immediate ignition and prevents cratering at the end of the weld.
Pulse arc mode enables up to 30% faster welding speeds.
4-roll motorised wire feeder with digital encoder for accurate wire delivery.
INTELLIGENT
-
Over 40 synergic programs for materials like Steel, AlMg, AlSi, CrNi, and CuSi
-
Intuitive and multilingual 3.5’’ HMI interface
-
Complete machine and synergy updates via USB stick
-
Stores up to 200 welding jobs for recurring tasks
-
Portability mode for transferring JOBS and system settings via USB
-
Weld traceability compliant with EN 3834 standards
-
Calibration mode for voltage adjustment using external accessories
-
Multi-user mode for shared machine access
-
Free online platform for customising the interface
ERGONOMIC
-
Automatic wire feeder selection via torch trigger or thumbwheel control
-
Tool-free cable connections on the rear panel for quick setup
-
Four lifting points for safe and easy transport
-
Lowered gas cylinder holder for simplified loading (up to 10 m³)
-
IP23S protection for use in demanding environments
-
Integrated storage compartment
-
Quick polarity switch on the front panel
-
LED illumination on wire feeder and spool section
-
Transparent viewing window to easily check filler wire usage
MULTIWELD 320T-C MIG/MAG/MMA Package
- MIG/MAG welding:
- MMA welding: basic and rutile electrodes (up to Ø 6 mm)
- Choice of trigger performance: 2T or 4T
- Welding support chart: a chart on the machine’s side helps the user adjust the tension and diameter of the filler wire according to the thickness of the material being welded.
- Display screen can be easily read, even in bright light.
- Easy to alter the settings using the machine’s simple user interface with accessible knobs and buttons suitable for gloved hands.
- Compatible reels: Ø 200 / 300 mm.
- Powerful, four-roller, motorised wire-feed rollers for efficient unwinding.
- European torch connection for quick assembly/disassembly.
- Pre-installed socket (36 V / 4.2 A) for heating gas in pure CO2 welding (heater not included).
- Compatible with US (type A) and EURO (types C/E/F) electrical sockets.
- IP 23 classification for outside use.
- Reinforced structure.
- 2 steel handles for easy manipulation.
